ELECTRICAL TOOL APPLICATION CHARTS

ELECTRICAL TOOL APPLICATION CHARTS

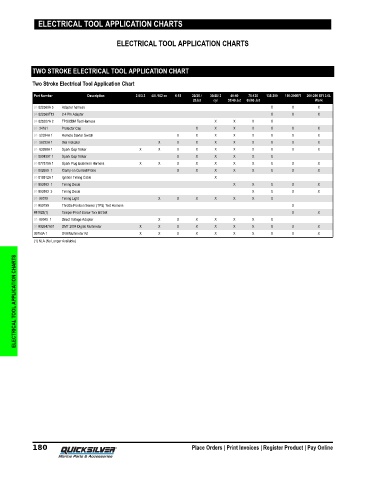

TWO STROKE ELECTRICAL TOOL APPLICATION CHART
Two Stroke Electrical Tool Application Chart

Part Number Description 2.5/3.3 4/5 /102 cc 6-15 20/25 / 30/40/ 2 40-60 75-125 135-200 150-200EFI 200-250 EFI 3.0L
20Jet cyl 30/40 Jet 65/80 Jet Work
91-822560A 5 Adapter harness X X X
84-822560T12 2-4 Pin Adapter X X X
84-825207A 2 TPS/CDM Test Harness X X X X
91- 24161 Protector Cap X X X X X X X
91- 52024A 1 Remote Starter Switch X X X X X X X X
91- 58222A 1 Dial Indicator X X X X X X X X X
91- 63998A 1 Spark Gap Tester X X X X X X X X X X
91-850439T 1 Spark Gap Tester X X X X X X
91-877870A 1 Spark Plug Extension Harness X X X X X X X X X X
91-802650 1 Clamp-on Current Probe X X X X X X X X
91-818812A 1 Ignition Timing Cable X
91-853883 1 Timing Decal X X X X X
91-853883 3 Timing Decal X X X X
91- 99379 Timing Light X X X X X X X
91-859199 Throttle Position Sensor (TPS) Test Harness X
881828(1) Tamper-Proof Screw Torx Bit Set X X
91- 89045 1 Direct Voltage Adapter X X X X X X X
91-892647A01 DMT 2004 Digital Multimeter X X X X X X X X X X
99750A 1 DVA/Multimeter Kit X X X X X X X X X X
(1) NLA (No Longer Available)
