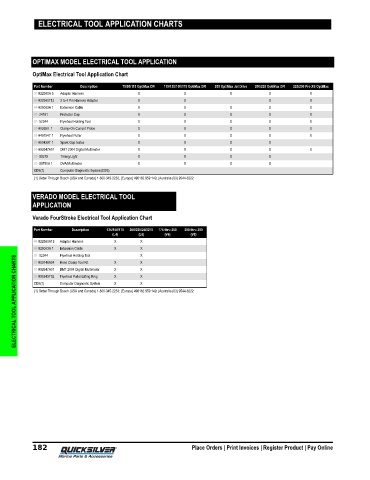

ELECTRICAL TOOL APPLICATION CHARTS

OPTIMAX MODEL ELECTRICAL TOOL APPLICATION

OptiMax Electrical Tool Application Chart
Part Number Description 75/90/115 OptiMax DFI 115/135/150/175 OptiMax DFI 200 OptiMax Jet Drive 200/225 OptiMax DFI 225/250 Pro XS OptiMax
91-822560A 5 Adapter Harness X X X X X
84-822560T12 2 to 4 Pin Harness Adapter X X X X
84-825003A 1 Extension Cable X X X X X
91- 24161 Protector Cap X X X X X
91- 52344 Flywheel Holding Tool X X X X X
91-802650 1 Clamp-On Current Probe X X X X X
91-849154T 1 Flywheel Puller X X X X X
91-850439T 1 Spark Gap tester X X X X
91-892647A01 DMT 2004 Digital Multimeter X X X X X
91- 99379 Timing Light X X X X
91- 99750A 1 DVA/Multimeter X X X X
CDS(1) Computer Diagnostic System(CDS)
(1) Order Through Bosch (USA and Canada) 1-800-345-2233; (Europe) 496182 959 149; (Australia (03) 9544-6222

VERADO MODEL ELECTRICAL TOOL
APPLICATION
Verado FourStroke Electrical Tool Application Chart

Part Number Description 135/150/175 200/225/250/275 175 thru 250 200 thru 300
(L4) (L6) (V6) (V8)
84-822560A13 Adapter Harness X X
84-825003A 1 Extension Cable X X X X X X X
Flywheel Holding Tool
91- 52344
ELECTRICAL TOOL APPLICATION CHARTS 91-895343T02 Flywheel Puller/Lifting Ring X X X X
91-803146A04
Hose Clamp Tool Kit
DMT 2004 Digital Multimeter
91-892647A01
Computer Diagnostic System
CDS(1)
(1) Order Through Bosch (USA and Canada) 1-800-345-2233; (Europe) 496182 959 149; (Australia (03) 9544-6222
