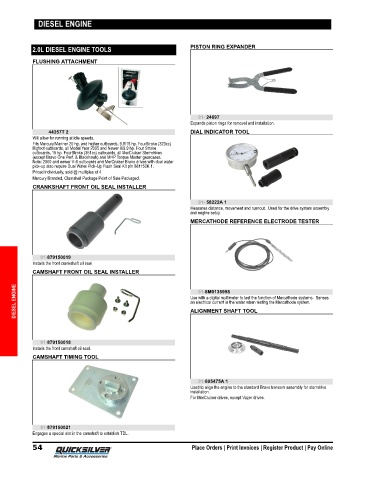

Page 61 - Mercury Service Tool Guide (2020) - 8M0163249

DIESEL ENGINE

2.0L DIESEL ENGINE TOOLS PISTON RING EXPANDER

FLUSHING ATTACHMENT

91- 24697
Expands piston rings for removal and installation.
44357T 2 DIAL INDICATOR TOOL
Will allow for running at idle speeds.
Fits Mercury/Mariner 20 hp. and higher outboards, 9.9/15 hp. FourStroke (323cc)
Bigfoot outboards, all Model Year 2005 and Newer 8/9.9 hp. Four Stroke
outboards, 15 hp. FourStroke (351cc) outboards, all MerCruiser Sterndrives
(except Bravo One Perf. & Blackhawk) and MHP Torque Master gearcases.
Note: 2000 and newer V‑6 outboards and MerCruiser Bravo drives with dual water
pick‑up also require Dual Water Pick‑Up Flush Seal Kit p/n 881150K 1.
Priced individually, sold @ multiples of 4
Mercury Branded, Clamshell Package Point of Sale Packaged.
CRANKSHAFT FRONT OIL SEAL INSTALLER

91- 58222A 1
Measures distance, movement and runnout. Used for the drive system assembly
and engine setup.
MERCATHODE REFERENCE ELECTRODE TESTER

91-879150019
Installs the front crankshaft oil seal.
CAMSHAFT FRONT OIL SEAL INSTALLER

DIESEL ENGINE Use with a digital multimeter to test the function of Mercathode systems. Senses
91-8M0135998
an electrical current in the water when testing the Mercathode system.
ALIGNMENT SHAFT TOOL

91-879150018
Installs the front camshaft oil seal.
CAMSHAFT TIMING TOOL

91-805475A 1
Used to align the engine to the standard Bravo transom assembly for sterndrive
installation.
For MerCruiser drives, except Vazer drives.

91-879150021
Engages a special slot in the camshaft to establish TDL.
