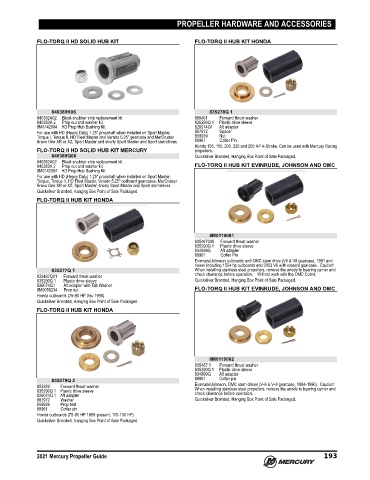

Page 200 - Mercury Propeller Guide (2021) - 8M0174460

PROPELLER HARDWARE AND ACCESSORIES

FLO-TORQ II HD SOLID HUB KIT FLO-TORQ II HUB KIT HONDA

840389K06 835278Q 1
840382A02 Black snubber strip replacement kit 888451 Forward thrust washer
840383A 2 Prop nut and washer kit 835290Q 1 Plastic drive sleeve
8M0142084 HD Prop Hub Bushing Kit 826074Q1 Aft adapter
For use with HD (Heavy Duty) 1.25" propshaft when installed on Sport Master, 887972 Spacer
Torque I, Torque II, HD Fleet Master and Verado 5.25" gearcase and MerCruiser 859939 Nut
Bravo One XR or XZ, Sport Master and shorty Sport Master and Sport sterndrives. 89961 Cotter Pin
Honda 135, 150, 200, 225 and 250 HP 4‑Stroke. Can be used with Mercury Racing
FLO-TORQ II HD SOLID HUB KIT MERCURY propellers.
840389Q06 Quicksilver Branded, Hanging Box Point of Sale Packaged.
840382A02 Black snubber strip replacement kit
840383A 2 Prop nut and washer kit FLO-TORQ II HUB KIT EVINRUDE, JOHNSON AND OMC
8M0142084 HD Prop Hub Bushing Kit
For use with HD (Heavy Duty) 1.25" propshaft when installed on Sport Master,
Torque, Torque II, HD Fleet Master, Verado 5.25" outboard gearcases, MerCruiser
Bravo One XR or XZ, Sport Master, shorty Sport Master and Sport sterndrives.
Quicksilver Branded, Hanging Box Point of Sale Packaged.
FLO-TORQ II HUB KIT HONDA

8M0119081
835467008 Forward thrust washer
835290Q 1 Plastic drive sleeve
834899Q Aft adapter
89961 Cotter Pin
Evinrude/Johnson outboards and OMC stern drive (V6 & V8 gearcase, 1991 and
newer including 150+ hp outboards and 2003 V6 with cresent gearcase. Caution!
835277Q 1 When installing stainless steel propellers, remove the anode to bearing carrier and
835467Q01 Forward thrust washer check clearance before operation. Will not work with the OMC Cobra.
835290Q 1 Plastic drive sleeve Quicksilver Branded, Hanging Box Point of Sale Packaged.
826074Q1 Aft adapter with Tab Washer
8M0056234 Prop nut FLO-TORQ II HUB KIT EVINRUDE, JOHNSON AND OMC
Honda outboards (75‑90 HP thru 1998)
Quicksilver Branded, Hanging Box Point of Sale Packaged.
FLO-TORQ II HUB KIT HONDA

8M0119082
835467 1 Forward thrust washer
835290Q 1 Plastic drive sleeve
834899Q Aft adapter
835279Q 2 89961 Cotter pin
853359 Forward thrust washer Evinrude/Johnson, OMC stern drives (V‑6 & V‑8 gearcase, 1984‑1990). Caution!
When installing stainless steel propellers, remove the anode to bearing carrier and
835290Q 1 Plastic drive sleeve check clearance before operation.
826074Q 1 Aft adapter
887972 Washer Quicksilver Branded, Hanging Box Point of Sale Packaged.
859939 Prop Nut
88961 Cotter pin
Honda outboards (75‑90 HP 1999‑present, 115‑130 HP)
Quicksilver Branded, Hanging Box Point of Sale Packaged.

2021 Mercury Propeller Guide 193
