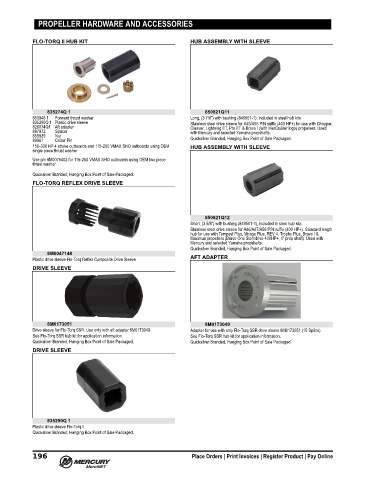

Page 203 - Mercury Propeller Guide (2021) - 8M0174460

PROPELLER HARDWARE AND ACCESSORIES

FLO-TORQ II HUB KIT HUB ASSEMBLY WITH SLEEVE

835274Q 1 850821Q11
853948 1 Forward thrust washer Long, (3 7/8") with bushing (849501‑1), included in steel hub kits
835290Q 1 Plastic drive sleeve Stainless steel drive sleeve for A45/A55 P/N suffix (400 HP+) for use with Chopper,
826074Q1 Aft adapter Cleaver, Lightning ET, Pro ET & Bravo I (with MerCruiser logo) propellers. Used
887972 Spacer with Mercury and selected Yamaha propshafts.
859939 Nut
89961 Cotter Pin Quicksilver Branded, Hanging Box Point of Sale Packaged.
150‑300 HP 4 stroke outboards and 115‑250 VMAX SHO outboards using OEM HUB ASSEMBLY WITH SLEEVE
single piece thrust washer
Use p/n 8M0075402 for 115‑250 VMAX SHO outboards using OEM two piece
thrust washer
Quicksilver Branded, Hanging Box Point of Sale Packaged.
FLO-TORQ REFLEX DRIVE SLEEVE

850821Q12
Short, (3 5/8") with bushing (849501‑1), included in steel hub kits
Stainless steel drive sleeve for A46/A47/A56 P/N suffix (400 HP+). Standard length
hub for use with Tempest Plus, Mirage Plus, REV 4, Trophy Plus, Bravo I &
Maximus propellers (Bravo One Sterndrive 400HP+, 1" prop shaft). Used with
Mercury and selected Yamaha propshafts.
Quicksilver Branded, Hanging Box Point of Sale Packaged.
8M0047148
Plastic drive sleeve Flo‑Torq Reflex Composite Drive Sleeve AFT ADAPTER
DRIVE SLEEVE

8M0173051 8M0173049
Drive sleeve for Flo‑Torq SSR. Use only with aft adapter 8M0173049. Adapter for use with only Flo‑Torq SSR drive sleeve 8M0173051 (15 Spline)
See Flo‑Torq SSR hub kit for application information. See Flo‑Torq SSR hub kit for application information.
Quicksilver Branded, Hanging Box Point of Sale Packaged. Quicksilver Branded, Hanging Box Point of Sale Packaged.
DRIVE SLEEVE

835290Q 1
Plastic drive sleeve Flo‑Torq II
Quicksilver Branded, Hanging Box Point of Sale Packaged.
