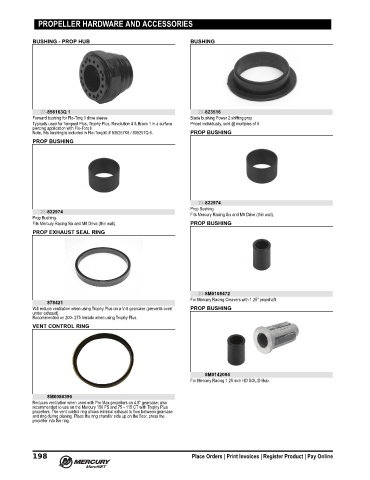

Page 205 - Mercury Propeller Guide (2021) - 8M0174460

PROPELLER HARDWARE AND ACCESSORIES

BUSHING - PROP HUB BUSHING

23-856163Q 1 23-823516
Forward bushing for Flo‑Torq II drive sleeve Blade bushing Power 2 shifting prop
Typically used for Tempest Plus, Trophy Plus, Revolution 4 & Bravo 1 in a surface Priced individually, sold @ multiples of 6
piercing application with Flo‑Torq II.
Note, this bushing is included in Flo‑Torq kit # 835257K6 / 835257Q 6. PROP BUSHING
PROP BUSHING

23-822974
Prop Bushing.
23-822974 Fits Mercury Racing Six and M8 Drive (thin wall).
Prop Bushing.
Fits Mercury Racing Six and M8 Drive (thin wall). PROP BUSHING
PROP EXHAUST SEAL RING

23-8M0108472
For Mercury Racing Cleavers with 1.25" propshaft.
878421
Will reduce ventilation when using Trophy Plus on a V‑6 gearcase (prevents over/ PROP BUSHING
under exhaust).
Recommended on 200‑ 275 Verado when using Trophy Plus.
VENT CONTROL RING

8M0142084
For Mercury Racing 1.25 inch HD SOLID Hub.

8M0086395
Reduces ventilation when used with Pro Max propellers on 4.8" gearcase; also
recommended to use on the Mercury 150 FS and 75 ‑ 115 CT with Trophy Plus
propellers. The vent control ring allows minimal exhaust to flow between gearcase
and ring during planing. Place the ring chamfer side up on the floor, press the
propeller into the ring.

198 Place Orders | Print Invoices | Register Product | Pay Online
