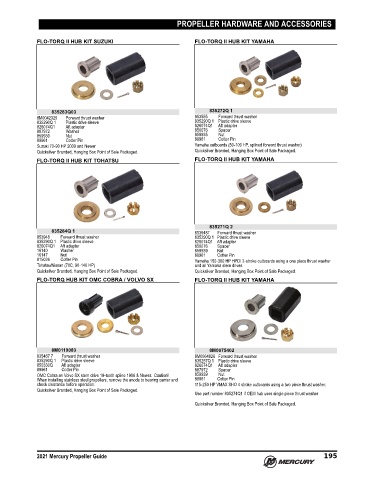

Page 202 - Mercury Propeller Guide (2021) - 8M0174460

PROPELLER HARDWARE AND ACCESSORIES

FLO-TORQ II HUB KIT SUZUKI FLO-TORQ II HUB KIT YAMAHA

835283Q03 835272Q 1
8M0042329 Forward thrust washer 853555 Forward thrust washer
835290Q 1 Plastic drive sleeve 835290Q 1 Plastic drive sleeve
826074Q1 Aft adapter 826074Q1 Aft adapter
887972 Washer 850076 Spacer
859939 Nut 859935 Nut
89961 Cotter Pin 89961 Cotter Pin
Suzuki 70‑90 HP 2009 and Newer Yamaha outboards (50‑100 HP, splined forward thrust washer)
Quicksilver Branded, Hanging Box Point of Sale Packaged. Quicksilver Branded, Hanging Box Point of Sale Packaged.
FLO-TORQ II HUB KIT TOHATSU FLO-TORQ II HUB KIT YAMAHA

835271Q 2
835284Q 1 853948T Forward thrust washer
853948 Forward thrust washer 835290Q 1 Plastic drive sleeve
835290Q 1 Plastic drive sleeve 826074Q1 Aft adapter
826074Q1 Aft adapter 850076 Spacer
16140 Washer 859939 Nut
16147 Nut 89961 Cotter Pin
815026 Cotter Pin Yamaha 150‑300 HP HPDI 2‑stroke outboards using a one piece thrust washer
Tohatsu/Nissan (70C, 90‑140 HP) and all Yamaha stern drives
Quicksilver Branded, Hanging Box Point of Sale Packaged. Quicksilver Branded, Hanging Box Point of Sale Packaged.
FLO-TORQ HUB KIT OMC COBRA / VOLVO SX FLO-TORQ II HUB KIT YAMAHA

8M0119083 8M0075402
835467 7 Forward thrust washer 8M0064826 Forward thrust washer
835290Q 1 Plastic drive sleeve 835257Q 1 Plastic drive sleeve
850330Q Aft adapter 826074Q1 Aft adapter
89961 Cotter Pin 887972 Spacer
OMC Cobra an Volvo SX stern drive 19‑tooth spline 1996 & Newer. Caution! 859939 Nut
When installing stainless steel propellers, remove the anode to bearing carrier and 89961 Cotter Pin
check clearance before operation. 115‑250 HP VMAX SHO 4 stroke outboards using a two piece thrust washer.
Quicksilver Branded, Hanging Box Point of Sale Packaged.
Use part number 835274Q1 if OEM hub uses single piece thrust washer
Quicksilver Branded, Hanging Box Point of Sale Packaged.

2021 Mercury Propeller Guide 195
