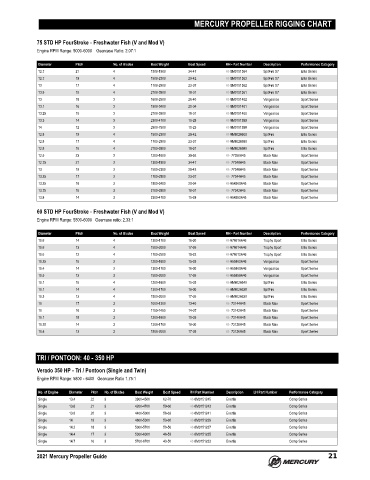

MERCURY PROPELLER RIGGING CHART
75 STD HP FourStroke ‑ Freshwater Fish (V and Mod V)
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1300-1900 34-47 48-8M0151364 SpitFire X7 Elite Series
12.7 19 4 1500-2300 29-42 48-8M0151363 SpitFire X7 Elite Series
13 17 4 1700-2900 23-37 48-8M0151362 SpitFire X7 Elite Series
13.5 15 4 2100-3900 18-31 48-8M0151361 SpitFire X7 Elite Series
13 18 3 1600-2500 26-40 48-8M0151402 Vengeance Sport Series
13.1 16 3 1900-3400 20-34 48-8M0151401 Vengeance Sport Series
13.25 15 3 2100-3900 18-31 48-8M0151400 Vengeance Sport Series
13.3 14 3 2300-4700 15-28 48-8M0151399 Vengeance Sport Series
14 12 3 2900-7500 10-23 48-8M0151398 Vengeance Sport Series
12.8 19 4 1500-2300 29-42 48-8M8026600 SpitFire Elite Series
12.8 17 4 1700-2900 23-37 48-8M8026590 SpitFire Elite Series
12.8 15 4 2100-3900 18-31 48-8M8026580 SpitFire Elite Series
12.5 23 3 1200-1600 39-52 48- 77350A45 Black Max Sport Series
12.75 21 3 1300-1900 34-47 48- 77348A45 Black Max Sport Series
13 19 3 1500-2300 29-42 48- 77346A45 Black Max Sport Series
13.25 17 3 1700-2900 23-37 48- 77344A45 Black Max Sport Series
13.25 16 3 1900-3400 20-34 48-854360A45 Black Max Sport Series
13.75 15 3 2100-3900 18-31 48- 77342A45 Black Max Sport Series
13.8 14 3 2300-4700 15-28 48-854352A45 Black Max Sport Series
60 STD HP FourStroke ‑ Freshwater Fish (V and Mod V)
Engine RPM Range: 5500‑6000 Gearcase ratio: 2.33:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
10.6 14 4 1300-1700 16-30 48-878616A46 Trophy Sport Elite Series
10.6 13 4 1500-2000 17-26 48-878614A46 Trophy Sport Elite Series
10.6 12 4 1700-2500 19-22 48-878612A46 Trophy Sport Elite Series
10.25 15 3 1200-1600 15-33 48-855862A46 Vengeance Sport Series
10.4 14 3 1300-1700 16-30 48-855860A46 Vengeance Sport Series
10.5 13 3 1500-2000 17-26 48-855858A46 Vengeance Sport Series
10.1 15 4 1200-1600 15-33 48-8M8026640 SpitFire Elite Series
10.1 14 4 1300-1700 16-30 48-8M8026635 SpitFire Elite Series
10.3 13 4 1500-2000 17-26 48-8M8026630 SpitFire Elite Series
10 17 3 1000-1300 13-40 48- 73144A45 Black Max Sport Series
10 16 3 1100-1400 14-37 48- 73142A45 Black Max Sport Series
10.1 15 3 1200-1600 15-33 48- 73140A45 Black Max Sport Series
10.25 14 3 1300-1700 16-30 48- 73138A45 Black Max Sport Series
10.4 13 3 1500-2000 17-26 48- 73136A45 Black Max Sport Series
TRI / PONTOON: 40 - 350 HP
Verado 350 HP ‑ Tri / Pontoon (Single and Twin)
Engine RPM Range: 5800 ‑ 6400 Gearcase Ratio 1.75:1
No. of Engine Diameter Pitch No. of Blades Boat Weight Boat Speed RH Part Number Description LH Part Number Performance Category
Single 13.4 22 3 3900-4500 62-70 48-8M0151245 Enertia Comp Series
Single 13.6 21 3 4200-4700 59-66 48-8M0151243 Enertia Comp Series
Single 13.8 20 3 4400-5000 56-63 48-8M0151241 Enertia Comp Series
Single 14 19 3 4600-5300 53-60 48-8M0151239 Enertia Comp Series
Single 14.2 18 3 5000-5700 50-56 48-8M0151237 Enertia Comp Series
Single 14.4 17 3 5300-6300 46-53 48-8M0151235 Enertia Comp Series
Single 14.7 16 3 5700-6700 43-50 48-8M0151233 Enertia Comp Series
2021 Mercury Propeller Guide 21
