Engine Harness

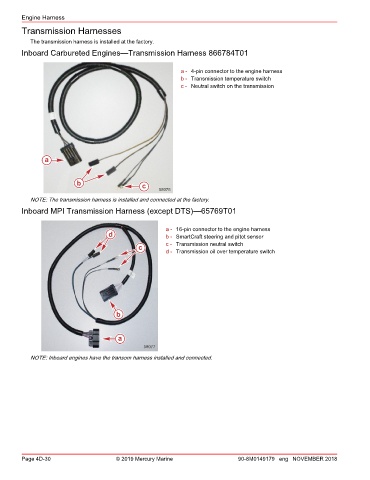

Transmission Harnesses

The transmission harness is installed at the factory.
Inboard Carbureted Engines—Transmission Harness 866784T01

a - 4‑pin connector to the engine harness
b - Transmission temperature switch
c - Neutral switch on the transmission

a

b c
58075
NOTE: The transmission harness is installed and connected at the factory.
Inboard MPI Transmission Harness (except DTS)—65769T01

a - 16‑pin connector to the engine harness
d b - SmartCraft steering and pitot sensor
c c - Transmission neutral switch
d - Transmission oil over temperature switch

b

a
58077
NOTE: Inboard engines have the transom harness installed and connected.
