Engine Harness

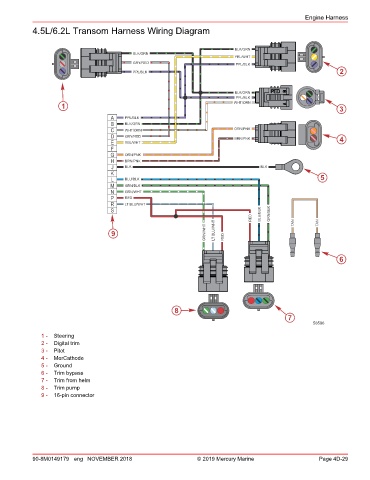

4.5L/6.2L Transom Harness Wiring Diagram
BLK/GRN
BLK/GRN
YEL/WHT
GRY/RED PPL/BLK
2
PPL/BLK
BLK/GRN
PPL/BLK
1 WHT/ORN 3
A PPL/BLK
B BLK/GRN
C WHT/ORN ORN/PNK
D GRY/RED BRN/PNK 4
E YEL/WHT
F
G ORN/PNK
H BRN/PNK
J BLK BLK
K
L BLU/BLK 5
M GRN/BLK
N GRN/WHT
P RED
R LT BLU/WHT
S
RED BLU/BLK GRN/BLK TAN TAN
GRN/WHT LT BLU/WHT
9 RED
6
8
7
58596
1 - Steering
2 - Digital trim
3 - Pitot
4 - MerCathode
5 - Ground
6 - Trim bypass
7 - Trim from helm
8 - Trim pump
9 - 16‑pin connector
