Engine Harness

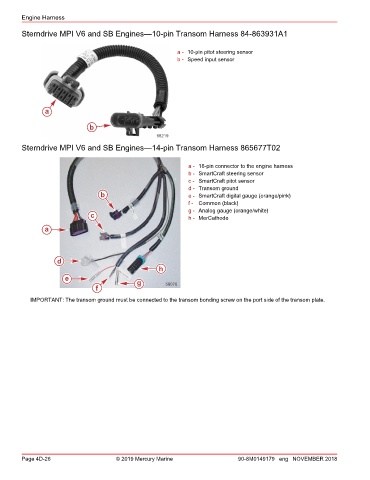

Sterndrive MPI V6 and SB Engines—10‑pin Transom Harness 84‑863931A1

a - 10‑pin pitot steering sensor
b - Speed input sensor

a

b

68219
Sterndrive MPI V6 and SB Engines—14‑pin Transom Harness 865677T02

a - 16‑pin connector to the engine harness
b - SmartCraft steering sensor
c - SmartCraft pitot sensor
d - Transom ground
b e - SmartCraft digital gauge (orange/pink)
f - Common (black)
g - Analog gauge (orange/white)
c h - MerCathode
a

d
h
e g

f 58076
IMPORTANT: The transom ground must be connected to the transom bonding screw on the port side of the transom plate.
