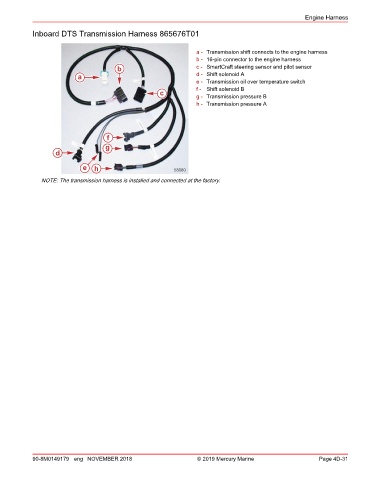

Engine Harness
Inboard DTS Transmission Harness 865676T01
a - Transmission shift connects to the engine harness
b - 16‑pin connector to the engine harness
b c - SmartCraft steering sensor and pitot sensor
a d - Shift solenoid A
e - Transmission oil over temperature switch
f - Shift solenoid B
c
g - Transmission pressure B
h - Transmission pressure A
f
g
d
e h 58080
NOTE: The transmission harness is installed and connected at the factory.
