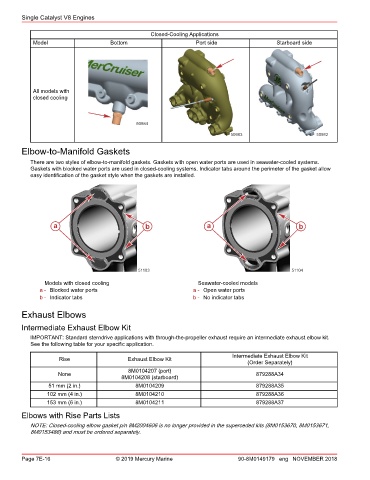

Single Catalyst V8 Engines

Closed‑Cooling Applications
Model Bottom Port side Starboard side

All models with
closed cooling

50984
50983 50982

Elbow‑to‑Manifold Gaskets

There are two styles of elbow‑to‑manifold gaskets. Gaskets with open water ports are used in seawater‑cooled systems.
Gaskets with blocked water ports are used in closed‑cooling systems. Indicator tabs around the perimeter of the gasket allow
easy identification of the gasket style when the gaskets are installed.

a b a b

51103 51104

Models with closed cooling Seawater-cooled models
a - Blocked water ports a - Open water ports
b - Indicator tabs b - No indicator tabs

Exhaust Elbows
Intermediate Exhaust Elbow Kit

IMPORTANT: Standard sterndrive applications with through‑the‑propeller exhaust require an intermediate exhaust elbow kit.
See the following table for your specific application.

Intermediate Exhaust Elbow Kit
Rise Exhaust Elbow Kit (Order Separately)
8M0104207 (port)
None 879288A34
8M0104208 (starboard)
51 mm (2 in.) 8M0104209 879288A35
102 mm (4 in.) 8M0104210 879288A36
153 mm (6 in.) 8M0104211 879288A37
Elbows with Rise Parts Lists

NOTE: Closed‑cooling elbow gasket p/n 8M2004606 is no longer provided in the superceded kits (8M0153670, 8M0153671,
8M0153486) and must be ordered separately.
