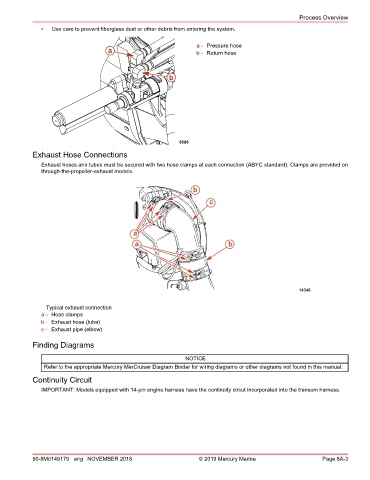

Page 271 - REPOWER REFERENCE GUIDE (2020)

Process Overview
• Use care to prevent fiberglass dust or other debris from entering the system.

a - Pressure hose
a b - Return hose

b

6686
Exhaust Hose Connections
Exhaust hoses and tubes must be secured with two hose clamps at each connection (ABYC standard). Clamps are provided on
through‑the‑propeller‑exhaust models.

b

c

a
a b

14348

Typical exhaust connection
a - Hose clamps
b - Exhaust hose (tube)
c - Exhaust pipe (elbow)

Finding Diagrams

NOTICE
Refer to the appropriate Mercury MerCruiser Diagram Binder for wiring diagrams or other diagrams not found in this manual.
Continuity Circuit

IMPORTANT: Models equipped with 14‑pin engine harness have the continuity circut incorporated into the transom harness.

90-8M0149179 eng NOVEMBER 2018 © 2019 Mercury Marine Page 8A-3
