Shift and Throttle Cable Installation

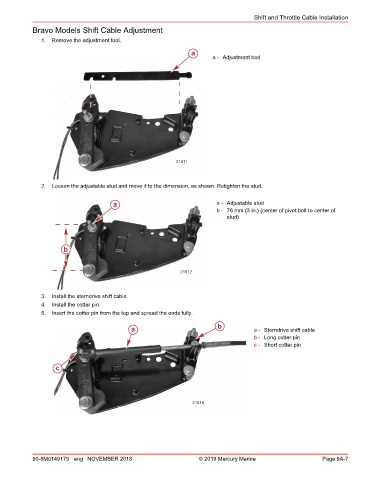

Bravo Models Shift Cable Adjustment

1. Remove the adjustment tool.
a
a - Adjustment tool

21611

2. Loosen the adjustable stud and move it to the dimension, as shown. Retighten the stud.

a a - Adjustable stud
b - 76 mm (3 in.) (center of pivot bolt to center of
stud)

b

21612

3. Install the sterndrive shift cable.
4. Install the cotter pin.
5. Insert the cotter pin from the top and spread the ends fully.

a b a - Sterndrive shift cable
b - Long cotter pin
c - Short cotter pin

c

21616
