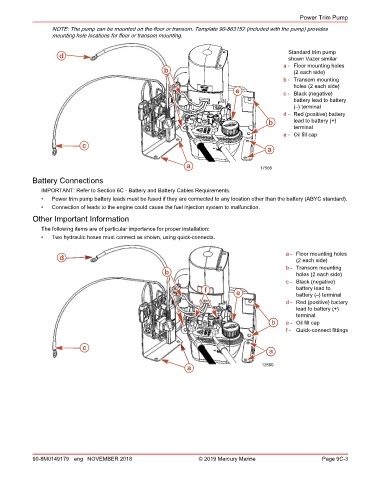

Power Trim Pump
NOTE: The pump can be mounted on the floor or transom. Template 90‑863152 (included with the pump) provides
mounting hole locations for floor or transom mounting.

Standard trim pump
d shown Vazer similar
a - Floor mounting holes
b (2 each side)
b - Transom mounting
holes (2 each side)
e c - Black (negative)
battery lead to battery
(–) terminal
d - Red (positive) battery
b lead to battery (+)
terminal
e - Oil fill cap
c
a

a 17566

Battery Connections
IMPORTANT: Refer to Section 6C ‑ Battery and Battery Cables Requirements.
• Power trim pump battery leads must be fused if they are connected to any location other than the battery (ABYC standard).
• Connection of leads to the engine could cause the fuel injection system to malfunction.
Other Important Information
The following items are of particular importance for proper installation:
• Two hydraulic hoses must connect as shown, using quick‑connects.

a - Floor mounting holes
d (2 each side)
b - Transom mounting
b holes (2 each side)
c - Black (negative)
f e battery lead to
battery (–) terminal
d - Red (positive) battery
lead to battery (+)
terminal
b e - Oil fill cap
f - Quick‑connect fittings

c
a

a 12680
