Diagrams

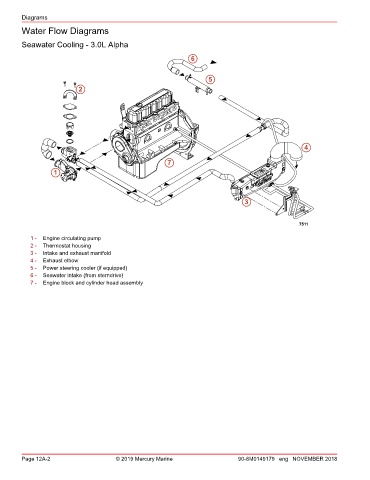

Water Flow Diagrams
Seawater Cooling ‑ 3.0L Alpha
6
5
2
4
7
1
3
7511
1 - Engine circulating pump
2 - Thermostat housing
3 - Intake and exhaust manifold
4 - Exhaust elbow
5 - Power steering cooler (if equipped)
6 - Seawater intake (from sterndrive)
7 - Engine block and cylinder head assembly
