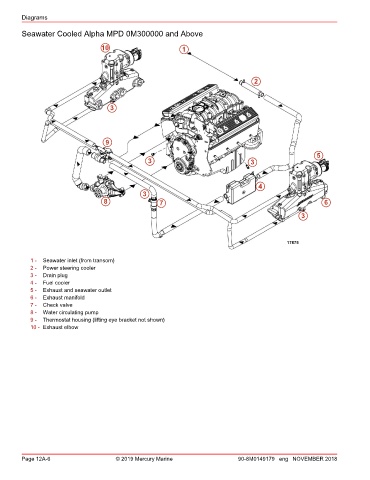

Diagrams
Seawater Cooled Alpha MPD 0M300000 and Above
10 1
2
3
9
5
3 3
4
3
8 7 6
3
17875
1 - Seawater inlet (from transom)
2 - Power steering cooler
3 - Drain plug
4 - Fuel cooler
5 - Exhaust and seawater outlet
6 - Exhaust manifold
7 - Check valve
8 - Water circulating pump
9 - Thermostat housing (lifting eye bracket not shown)
10 - Exhaust elbow
