Diagrams

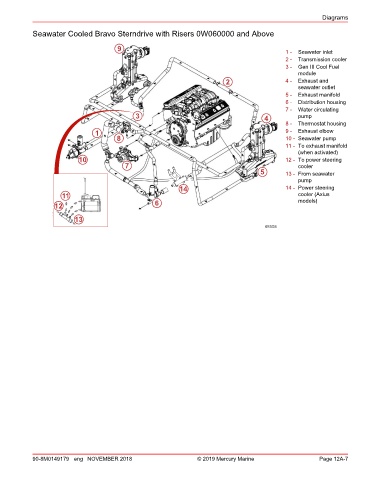

Seawater Cooled Bravo Sterndrive with Risers 0W060000 and Above
9 1 - Seawater inlet
2 - Transmission cooler
3 - Gen III Cool Fuel
module
2 4 - Exhaust and
seawater outlet
5 - Exhaust manifold
6 - Distribution housing
7 - Water circulating
3 4 pump
8 - Thermostat housing
1 9 - Exhaust elbow
8 10 - Seawater pump
11 - To exhaust manifold
(when activated)
10 12 - To power steering
7 cooler
5 13 - From seawater
pump
14 14 - Power steering
11 cooler (Axius
models)
12 6
13
