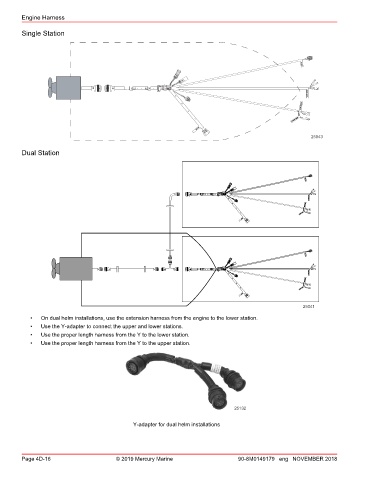

Engine Harness

Single Station

25043
Dual Station

25041
• On dual helm installations, use the extension harness from the engine to the lower station.
• Use the Y‑adapter to connect the upper and lower stations.
• Use the proper length harness from the Y to the lower station.
• Use the proper length harness from the Y to the upper station.

25132

Y-adapter for dual helm installations
