P. 100

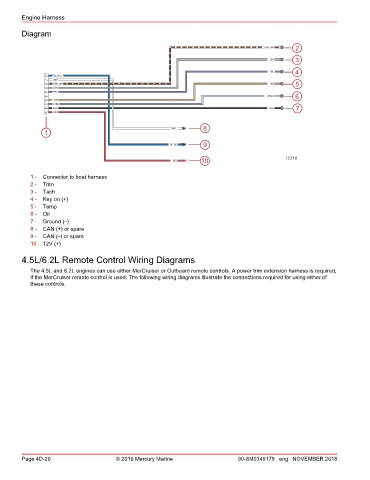

Engine Harness
Diagram
BRN_WHT 2
GRY 3
PPL 4
K DK_BLU
J WHT
H BRN_WHT TAN 5
G GRY
F PPL
E LTBLU 6
D TAN
C LTBLU
B BLK BLK 7
A RED
WHT 8
1
DK_BLU 9
10 12318
RED
1 - Connector to boat harness
2 - Trim
3 - Tach
4 - Key on (+)
5 - Temp
6 - Oil
7 - Ground (–)
8 - CAN (+) or spare
9 - CAN (–) or spare
10 - 12V (+)
4.5L/6.2L Remote Control Wiring Diagrams
The 4.5L and 6.2L engines can use either MerCruiser or Outboard remote controls. A power trim extension harness is required,
if the MerCruiser remote control is used. The following wiring diagrams illustrate the connections required for using either of
these controls.
Page 4D-20 © 2019 Mercury Marine 90-8M0149179 eng NOVEMBER 2018
