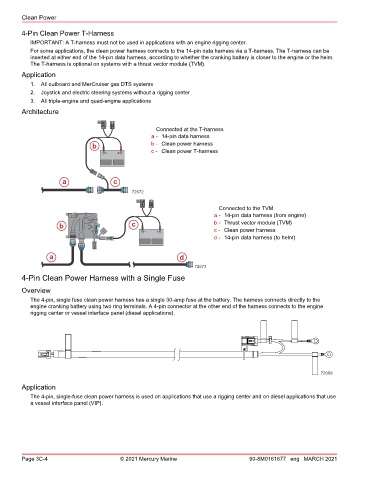

Clean Power

4-Pin Clean Power T-Harness
IMPORTANT: A T‑harness must not be used in applications with an engine rigging center.
For some applications, the clean power harness connects to the 14‑pin data harness via a T‑harness. The T‑harness can be
inserted at either end of the 14‑pin data harness, according to whether the cranking battery is closer to the engine or the helm.
The T‑harness is optional on systems with a thrust vector module (TVM).
Application
1. All outboard and MerCruiser gas DTS systems
2. Joystick and electric steering systems without a rigging center
3. All triple‑engine and quad‑engine applications
Architecture

Connected at the T-harness
a - 14‑pin data harness
b b - Clean power harness
c - Clean power T‑harness

a c
72672

Connected to the TVM
a - 14‑pin data harness (from engine)
b c b - Thrust vector module (TVM)
c - Clean power harness
d - 14‑pin data harness (to helm)

a d
72673
4‑Pin Clean Power Harness with a Single Fuse

Overview
The 4‑pin, single fuse clean power harness has a single 30‑amp fuse at the battery. The harness connects directly to the
engine cranking battery using two ring terminals. A 4‑pin connector at the other end of the harness connects to the engine
rigging center or vessel interface panel (diesel applications).

72009

Application
The 4‑pin, single‑fuse clean power harness is used on applications that use a rigging center and on diesel applications that use
a vessel interface panel (VIP).
