Clean Power

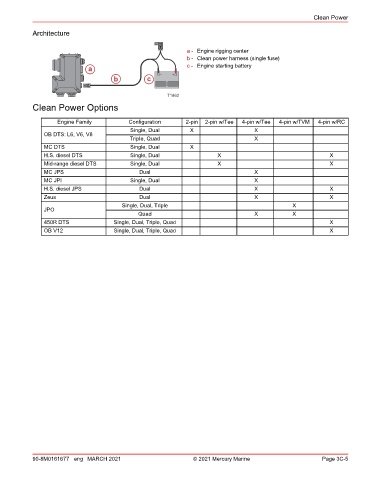

Architecture
a - Engine rigging center
b - Clean power harness (single fuse)
a c - Engine starting battery
b c
71862
Clean Power Options
Engine Family Configuration 2‑pin 2‑pin w/Tee 4‑pin w/Tee 4‑pin w/TVM 4‑pin w/RC
Single, Dual X X
OB DTS: L6, V6, V8
Triple, Quad X
MC DTS Single, Dual X
H.S. diesel DTS Single, Dual X X
Mid‑range diesel DTS Single, Dual X X
MC JPS Dual X
MC JPI Single, Dual X
H.S. diesel JPS Dual X X
Zeus Dual X X
Single, Dual, Triple X
JPO
Quad X X
450R DTS Single, Dual, Triple, Quad X
OB V12 Single, Dual, Triple, Quad X
