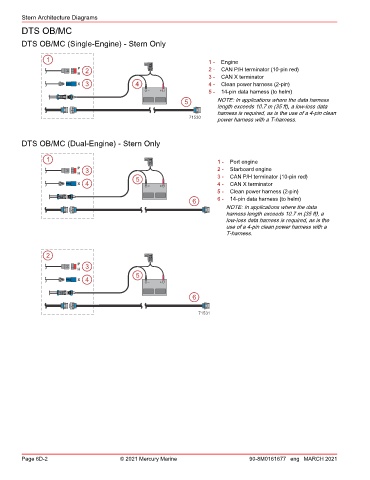

Stern Architecture Diagrams
DTS OB/MC

DTS OB/MC (Single‑Engine) ‑ Stern Only

1 1 - Engine
P 2 2 - CAN P/H terminator (10‑pin red)
H
3 - CAN X terminator
X 3 4 4 - Clean power harness (2‑pin)
5 - 14‑pin data harness (to helm)
5 NOTE: In applications where the data harness
length exceeds 10.7 m (35 ft), a low‑loss data
harness is required, as is the use of a 4‑pin clean
71530 power harness with a T‑harness.

DTS OB/MC (Dual‑Engine) ‑ Stern Only

1 1 - Port engine
P 3 2 - Starboard engine
H 3 - CAN P/H terminator (10‑pin red)
5
X 4 4 - CAN X terminator
5 - Clean power harness (2‑pin)
6 6 - 14‑pin data harness (to helm)
NOTE: In applications where the data
harness length exceeds 10.7 m (35 ft), a
low‑loss data harness is required, as is the
use of a 4‑pin clean power harness with a
T‑harness.

2
P
H 3
5
X 4

6

71531
