Stern Architecture Diagrams

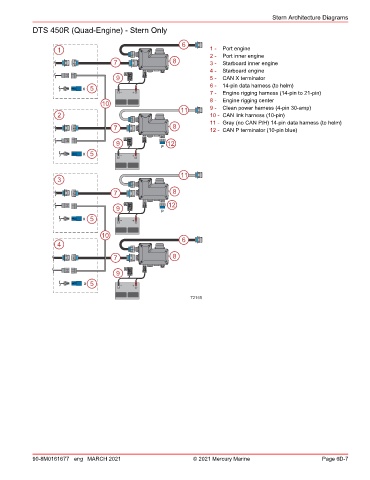

DTS 450R (Quad‑Engine) ‑ Stern Only

6
1 1 - Port engine
2 - Port inner engine
7 8 3 - Starboard inner engine
4 - Starboard engine
9 5 - CAN X terminator
6 - 14‑pin data harness (to helm)
X 5
7 - Engine rigging harness (14‑pin to 21‑pin)
8 - Engine rigging center
10
11 9 - Clean power harness (4‑pin 30‑amp)
2 10 - CAN link harness (10‑pin)
11 - Gray (no CAN P/H) 14‑pin data harness (to helm)
7 8 12 - CAN P terminator (10‑pin blue)

9 12
P
X 5

11
3

7 8

12
9 P
X 5

10
4 6
7 8

9
X 5

72165

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 6D-7
