Stern Architecture Diagrams

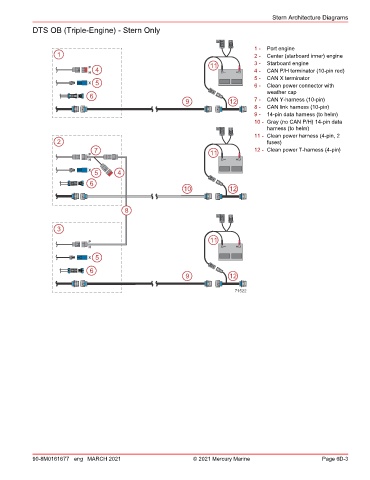

DTS OB (Triple‑Engine) ‑ Stern Only

1 - Port engine
1 2 - Center (starboard inner) engine

11 3 - Starboard engine
P 4
H 4 - CAN P/H terminator (10‑pin red)
5 - CAN X terminator
X 5
6 - Clean power connector with
weather cap
6
9 12 7 - CAN Y‑harness (10‑pin)
8 - CAN link harness (10‑pin)
9 - 14‑pin data harness (to helm)
10 - Gray (no CAN P/H) 14‑pin data
harness (to helm)
11 - Clean power harness (4‑pin, 2
2 fuses)
7 12 - Clean power T‑harness (4‑pin)
P 11
H

X X
5 4
6
10 12

8

3

11
P
H
X 5

6
9 12

71522

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 6D-3
