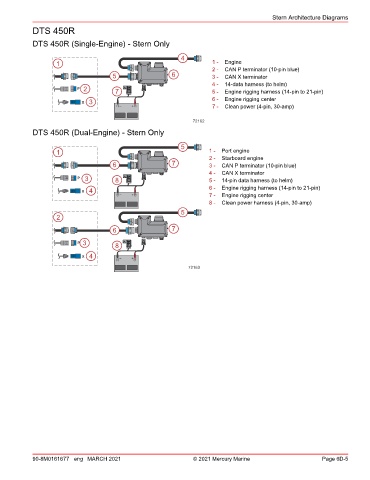

Stern Architecture Diagrams
DTS 450R

DTS 450R (Single‑Engine) ‑ Stern Only

4
1 1 - Engine
2 - CAN P terminator (10‑pin blue)
5 6 3 - CAN X terminator
4 - 14‑data harness (to helm)
P 2 7 5 - Engine rigging harness (14‑pin to 21‑pin)
X 3 6 - Engine rigging center
7 - Clean power (4‑pin, 30‑amp)

72162
DTS 450R (Dual‑Engine) ‑ Stern Only

5
1 1 - Port engine
2 - Starboard engine
6 7 3 - CAN P terminator (10‑pin blue)
4 - CAN X terminator
P 3 8 5 - 14‑pin data harness (to helm)
6 - Engine rigging harness (14‑pin to 21‑pin)
X 4
7 - Engine rigging center
8 - Clean power harness (4‑pin, 30‑amp)
5
2

6 7
P 3
8
X 4

72163
