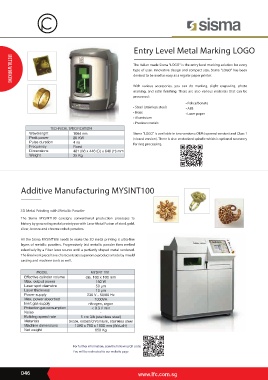

Entry Level Metal Marking LOGO

The Italian made Sisma "LOGO" is the entry level marking solution for every
type of user. Innovative design and compact size, Sisma "LOGO" has been
devised to be used as easy as a regular paper printer.

metalworking
With various accessories, you can do marking, slight engraving, photo
marking, and satin nishing. There are also various materials that can be
processed :
• Policarbonate
• Steel (stainless steel) • ABS
• Brass • Laser paper
• Aluminium
• Precious metals
TECHNICAL SPECIFICATION
Wavelenght 1064 nm Sisma "LOGO" is available in two versions; OEM (opened version) and Class 1
Peak power 20 KW (closed version). There is also motorized spindle which is optional accessory
Pulse duration 4 ns for ring processing.
Frequency Fixed
Dimensions 481 (W) x 446 (D) x 640 (H) mm
Weight 35 Kg

Additive Manufacturing MYSINT100

3D Metal Printing with Metallic Powder
The Sisma MYSINT100 consigns conventional production processes to
history by generating metal prototypes with Laser Metal Fusion of steel, gold,
silver, bronze and chrome cobalt powders.

All the Sisma MYSINT100 needs to make the 3D metal printing is ultra-ne
layers of metallic powders. Progressively laid metallic powder then melted
selectively by a Fiber laser source until a perfectly shaped metal rendered.
The nal workpiece have characteristics superior to products made by mould
casting and machine tools as well.

MODEL MYSINT 100
Effective cylinder volume dia. 100 x 100 mm
Max. output power 150 W
Laser spot diametre 50 µm
Layer thickness 10 µm
Power supply 230 V - 50/60 Hz
Max. power absorbed 1000VA
Inert gas supply nitrogen, argon
Protection gas consumption < 0.3 I/ min
Noise -
Building speed rate 5 cm 3/h (stainless steel)
Materials broze, cobalt/chromium, stainless steel
Machine dimensions 1390 x 760 x 1600 mm (WxLxH)
Net weight 650 Kg

For further information, scan the following QR code:
You will be redirected to our website page
