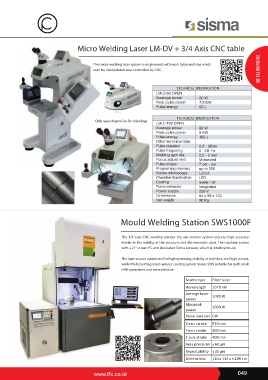

Micro Welding Laser LM-DV + 3/4 Axis CNC table

metalworking
The micro-welding laser system is engineered with work table and vise which
acan be interpolated axes controlled by CNC,

TECHNICAL SPECIFICATION
LM-D 60 OPEN
Awerage power 60 W
Peak pulse power 7.5 KW
Pulse energy 60 J

TECHNICAL SPECIFICATION
Only need Argon Gas for shielding!
LM-D 100 OPEN
Awerage power 80 W
Peak pulse power 9 KW
Pulse energy 100 J
Other technical data
Pulse duration 0.3 - 30ms
Pulse frequency 0 - 20 Hz
Welding spot dia. 0.2 - 2 mm
Focus adjustment Motorized
Pulse shape 7 per - ser
Programing memory up to 250
Stereo microscope LEICA
Chamber illumination LED
Cooling water / air
Fume extractor Integrated
Power supply 230 V
Dimensions 54 x 69 x 133
Net weight 90 Kg

Mould Welding Station SWS1000F

The 3/4 axes CNC welding station; the axis motion system ensures high accuracy
thanks to the solidity of the structure and the materials used. The machine comes
with a 21" screen PC and dedicated Sisma sotware, which is intuitive to use.

The laser source optimized for high operating stability at both low and high power,
while the fully integrated radiator cooling system makes SWS suitable for both small
inll operations and extended use.

Source type Fiber laser
Wavelength 1070 nm
Average laser 1000 W
power
Max peak 1000 W
power
Pulse dura�on CW
X axis stroke 520 mm
Y axis stroke 400 mm
Z axis stroke 400 mm
Axes precision ± 60 µm
Repeatability ± 30 µm
Dimensions 120 x 135 x h 200 cm
