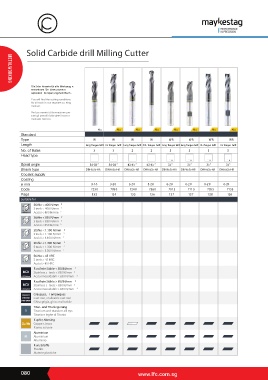

Page 36 - LFC Catalogue metalworking

Solid Carbide drill Milling Cutter

metalworking
Die Schn ittwerte für alle Werkzeug e
entnehmen Sie bitte unsere m
separaten Zerspan ungshandbuch .
You will find the cutting conditions
for all tools in our separate cu tting
manual.
Per i pa rametri di lavorazione per
tutti gli utensili richiedete il nostr o
manuale tecnico.
Alu Alu Alu Alu Alu Alu Alu Alu
Standard DIN 6527L WN
Type W W W W WR WR WR WR
Length lang-freiges tellt XL-freiges tellt lang-freiges tellt XXL-freiges tellt lang-freiges tellt lang-freiges tellt XL-freiges tellt XL-freiges tellt
No. of flutes 3 3 2 2 3 3 3 3
Head type

Spiral angle 34-38 ° 34-38 ° 43-45 ° 43-45 ° 35° 35° 35° 35°
Shank type DIN 6535-HA DIN 6535-HA DIN 6535-HA DIN 6535-HA DIN 6535-HA DIN 6535-HB DIN 6535-HA DIN 6535-HB
Coolant supply
Coating
ø mm 3-16 3-20 3-20 3-20 6-20 6-20 6-20 6-20
Code 7230 7090 7240 7260 7015 7115 7055 7155
Page 133 134 135 136 137 137 138 138
Suitable for
Stähle < 400 N/mm 2
S teels < 400 N/mm 2
Acciai < 400 N/mm 2
Stähle < 850 N/mm 2
S teels < 850 N/mm 2
<850 N/mm 2 Acciai < 850 N/mm 2
Stähle < 1.100 N/mm 2
S teels < 1.100 N/mm 2
< 1100 N/mm 2 Acciai < 1.100 N/mm 2
Stähle < 1.300 N/mm 2
S teels < 1.300 N/mm 2
<1300 N/mm 2 Acciai < 1.300 N/mm 2
Stähle > 45 HRC
S teels > 45 HRC
>45 HRC Acciai > 45 HRC
R ostfreie Stähle < 850 N/mm 2
Stainless s teels < 850 N/mm 2
Acciai inossidabili < 850 N/mm 2
R ostfreie Stähle > 850 N/mm 2
Stainless s teels > 850 N/mm 2
Acciai inossidabili > 850 N/mm 2
Grauguss, Temperguss
Cast iron, malleable cast iron
Ghisa grigia, ghisa malleabile
Titan- und Titanlegierung
Titanium and titanium all oys
Titanio e leghe di Titanio
Kupfer, Messing
Coppe r, brass
R ame, ot tone
Aluminium
Aluminium
Alluminio
Kunststoe
Plastics
Materie plastiche

080 www.lfc.com.sg
