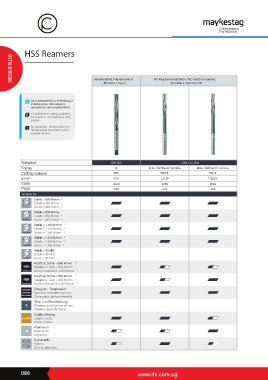

Page 42 - LFC Catalogue metalworking

HSS Reamers

Handreibahle / Hand reamers NC-Maschinenreibahlen / NC-machine reamers
Alesatori a mano Alesatori a macchina NC
metalworking

Die Schnittwerte für al le Werkzeug e
entnehmen Sie bitte unsere m
separaten Ze rspan ungshandbuch .
You will find the cutting conditions
for all tools in our separate cu tting
manual.
Per i parametri di lavorazione per
tutti gli utensili richie dete il nostr o
manuale tecnico.

Standard DIN 206 ~ DIN 212, WN
Forma B links / left hand / sinistra links / left hand / sinistra
Cutting material HSS HSS-E HSS-E
ø mm 2-20 1,5-20 1-12,03
Code 3020 3080 3082
Page 330 331 333
Suitable for
Stähle < 400 N/mm 2
S teels < 400 N/mm 2
Acciai < 400 N/mm 2
Stähle < 850 N/mm 2
S teels < 850 N/mm 2
2 2
< 850 N/mm Acciai < 850 N/mm
Stähle < 1.100 N/mm 2
S teels < 1.100 N/mm 2
< 1100 N/mm 2 Acciai < 1.100 N/mm 2
Stähle < 1.300 N/mm 2
S teels < 1.300 N/mm 2
< 1300 N/mm 2 Acciai < 1.300 N/mm 2
Stähle > 45 HRC
S teels > 45 HRC
Acciai > 45 HRC
> 45 HRC
R ostfreie Stähle < 850 N/mm 2
Stainless s teels < 850 N/mm 2
Acciai inossidabili < 850 N/mm 2
R ostfreie Stähle > 850 N/mm 2
Stainless s teels > 850 N/mm 2
Acciai inossidabili > 850 N/mm 2
Grauguss, Temperguss
Cast iron, malleable cast iron
Ghisa grigia, ghisa malleabile
Titan- und Titanlegierung
Titanium and titanium all oys
Titanio e leghe di Titanio
Kupfer, Messing
Coppe r, brass
R ame, ot tone
Aluminium
Aluminium
Alluminio
Kunststoe
Plastics
Materie plastiche
