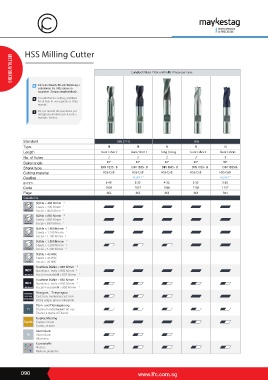

Page 46 - LFC Catalogue metalworking

HSS Milling Cutter

Langlochfräser / Slot end mills / Frese per cave

metalworking
Die Schn ittwerte für alle Werkzeug e
entnehmen Sie bitte unsere m
separaten Zerspan ungshandbuch .
You will find the cutting conditions
for all tools in our separate cu tting
manual.
Per i pa rametri di lavorazione per
tutti gli utensili richie dete il nostr o
manuale tecnico.

Standard DIN 327 D WN
Type N N N N N
Length kurz / shor t kurz / shor t lang / long kurz / shor t kurz / short
No. of flutes 2 2 2 3 3
Spiral angle 30° 30° 30° 30° 30°
Shank type DIN 1835- B DIN 1835- B DIN 1835- B DIN 1835- B DIN 1835-B
Cutting material HSS-Co8 HSS-Co8 HSS-Co8 HSS-Co8 HSS-Co8
Coating ALUNI T ® ALUNI T ®
ø mm 2-40 2-25 4-32 3-25 3-25
Code 1026 1027 1086 1156 1157
Page 362 362 363 364 364
Suitable for
Stähle < 400 N/mm 2
S teels < 400 N/mm 2
Acciai < 400 N/mm 2
Stähle < 850 N/mm 2
S teels < 850 N/mm 2
<850 N/mm 2 Acciai < 850 N/mm 2
Stähle < 1.100 N/mm 2
S teels < 1.100 N/mm 2
<1100 N/mm 2 Acciai < 1.100 N/mm 2
Stähle < 1.300 N/mm 2
S teels < 1.300 N/mm 2
<1300 N/mm 2 Acciai < 1.300 N/mm 2
Stähle > 45 HRC
S teels > 45 HRC
>45 HRC Acciai > 45 HRC
R ostfreie Stähle < 850 N/mm 2
Stainless s teels < 850 N/mm 2
Acciai inossidabili < 850 N/mm 2
R ostfreie Stähle > 850 N/mm 2
Stainless s teels > 850 N/mm 2
Acciai inossidabili > 850 N/mm 2
Grauguss, Temperguss
Cast iron, malleable cast iron
Ghisa grigia, ghisa malleabile
Titan- und Titanlegierung
Titanium and titanium all oys
Titanio e leghe di Titanio
Kupfer, Messing
Coppe r, brass
R ame, ot tone
Aluminium
Aluminium
Alluminio
Kunststoe
Plastics
Materie plastiche
