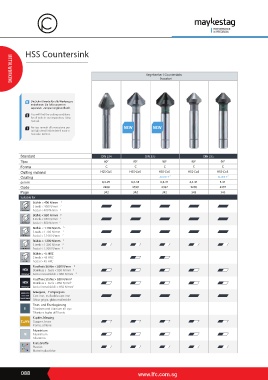

Page 44 - LFC Catalogue metalworking

HSS Countersink

Kegelsenker / Countersinks
Svasatori
metalworking

Die Schn ittwerte für alle Werkzeug e
entnehmen Sie bitte unsere m
separaten Zerspan ungshandbuch .
You will find the cutting conditions
for all tools in our separate cu tting
manual.
Per i pa rametri di lavorazione per
tutti gli utensili richiedete il nostr o
manuale tecnico.

Standard DIN 334 DIN 335 DIN 335
Tipo 60° 90° 90° 90° 90°
Forma C C C C C
Cutting material HSS-Co5 HSS-Co5 HSS-Co5 HSS-Co5 HSS-Co5
Coating ALUNI T ® ALUNI T ®
ø mm 6,3-25 6,3-31 6,3-31 4,3-31 5-31
Code 2280 2390 2397 2290 2297
Page 342 342 342 343 343
Suitable for
Stähle < 400 N/mm 2
S teels < 400 N/mm 2
Acciai < 400 N/mm 2
Stähle < 850 N/mm 2
S teels < 850 N/mm 2
Acciai < 850 N/mm 2
< 850 N/mm 2
Stähle < 1.100 N/mm 2
S teels < 1.100 N/mm 2
< 1100 N/mm 2 Acciai < 1.100 N/mm 2
Stähle < 1.300 N/mm 2
S teels < 1.300 N/mm 2
< 1300 N/mm 2 Acciai < 1.300 N/mm 2
Stähle > 45 HRC
S teels > 45 HRC
Acciai > 45 HRC
> 45 HRC
R ostfreie Stähle < 850 N/mm 2
Stainless s teels < 850 N/mm 2
Acciai inossidabili < 850 N/mm 2
R ostfreie Stähle > 850 N/mm 2
Stainless s teels > 850 N/mm 2
Acciai inossidabili > 850 N/mm 2
Grauguss, Temperguss
Cast iron, malleable cast iron
Ghisa grigia, ghisa malleabile
Titan- und Titanlegierung
Titanium and titanium all oys
Titanio e leghe di Titanio
Kupfer, Messing
Coppe r, brass
R ame, ot tone
Aluminium
Aluminium
Alluminio
Kunststoe
Plastics
Materie plastiche
