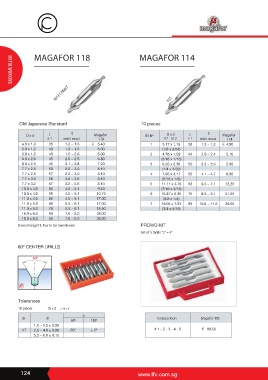

Page 80 - LFC Catalogue metalworking

MAGAFOR 118 MAGAFOR 114

metalworking
HSS-E COBALT HSS

Old Japanese Standard 10 pieces

D x d L Magafor BS Nº D x d L Magafor
± 1 mini maxi 118 h7 k12 ± 1 mini maxi 114
4.0 x 1.0 35 1.2 ~ 1.5 € 5.40 1 3.17 x 1.19 38 1.5 ~ 1.8 € 4.90
5.0 x 1.2 40 1.3 ~ 1.8 6.00 (1/8 x 3/64)
5.0 x 1.5 40 1.5 ~ 2.0 6.00 2 4.76 x 1.58 44 2.0 ~ 2.4 5.10
6.0 x 2.0 45 2.0 ~ 2.5 6.80 (3/16 x 1/16)
6.0 x 2.5 45 3.1 ~ 3.8 7.20 3 6.35 x 2.38 50 3.3 ~ 3.9 5.90
7.7 x 2.5 50 2.5 ~ 3.0 8.10 (1/4 x 3/32)
7.7 x 2.5 57 2.5 ~ 3.0 8.10 4 7.93 x 3.17 56 4.1 ~ 4.7 6.80
7.7 x 3.0 56 3.0 ~ 3.6 8.10 (5/16 x 1/8)
7.7 x 3.2 57 3.2 ~ 3.8 8.10 5 11.11 x 4.76 63 6.5 ~ 7.1 12.25
10.0 x 4.0 65 4.5 ~ 5.1 9.40 (7/16 x 3/16)
10.0 x 4.0 69 4.5 ~ 5.1 10.75 6 15.87 x 6.35 75 8.5 ~ 9.1 21.25
11.0 x 4.0 69 4.5 ~ 5.1 17.00 (5/8 x 1/4)
11.0 x 5.0 69 5.5 ~ 6.1 17.00 7 19.05 x 7.93 89 10.8 ~ 11.6 39.00
11.0 x 5.0 78 5.5 ~ 6.1 18.50 (3/4 x 5/16)
16.0 x 6.0 90 7.0 ~ 8.0 35.00
18.0 x 6.0 95 7.0 ~ 8.0 38.00
Overall lenght L has to be mentioned PROMO-KIT
Set of 5 Drills “L” = 4”

60º CENTER DRILLS

60°

Tolerances
10 pieces D x d ≤ 10 x 4
α
D d Composition Magafor 185
60º 118º
1.0 ~ 1.5 ± 0.05
h7 2.0 ~ 4.0 ± 0.08 -30’ ± 2º # 1 - 2 - 3 - 4 - 5 € 88.50
5.0 ~ 6.0 ± 0.12
