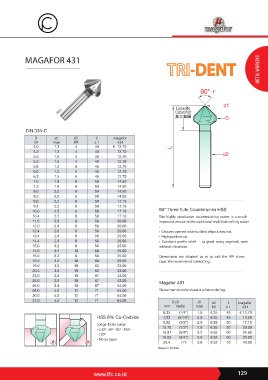

Page 85 - LFC Catalogue metalworking

MAGAFOR 431
metalworking

90° - 1°

d1
Capacity
HSS Capacidad
D

DIN 335-C
D d1 d2 magafor
z9 maxi h9 ± 1 431
4.0 1.3 4 40 € 12.70 L
4.3 1.3 4 40 12.70 d2
5.0 1.5 4 40 12.70
5.3 1.5 4 40 12.70
5.8 1.5 5 45 12.70
6.0 1.5 5 45 12.70
6.3 1.5 5 45 12.70
7.0 1.8 6 50 14.50
7.3 1.8 6 50 14.50
8.0 2.0 6 50 14.50
8.3 2.0 6 50 14.50
9.0 2.2 6 50 17.10
9.4 2.2 6 50 17.10
10.0 2.5 6 50 17.10 90º Three flute Countersinks HSS
10.4 2.5 6 50 17.10 The highly productive countersinking cutter is a much
11.5 2.8 8 56 20.00 improved version of the traditional multi te milling cutter
12.0 2.8 8 56 20.00 :
12.4 2.8 8 56 20.00 • Grooves opened wide to allow chips a way out,
13.4 2.9 8 56 25.60 • High positive cut
14.4 2.9 8 56 25.60 • Constant pro e relief (a great many regrinds) work
15.0 3.2 8 56 25.60 without vibrations.
15.0 3.2 10 60 25.60
16.5 3.2 8 56 25.60 Dimensions are adapted so as to sink the 90º screw
16.5 3.2 10 60 25.60 caps. We recommend lubricating.
19.0 3.5 10 63 33.00
20.5 3.5 10 63 33.00
23.0 3.8 10 67 43.00
25.0 3.8 10 67 43.00 Magafor 431
26.0 3.8 10 67 54.00
28.0 4.0 12 71 54.00 Please mention the shank ø when ordering.
30.0 4.2 12 71 64.00
31.0 4.2 12 71 64.00 D z9 d1 d2 magafor
mm (inch) maxi h9 ± 1 431
6.35 (1/4”) 1.5 6.35 45 € 12.70
HSS 8% Co-Carbide 7.93 (5/16”) 2.0 6.35 45 14.50
9.52 (3/8”) 2.5 6.35 50 17.10
Longs- Extra Longs
• α 30º - 60º - 82º - 100º 12.70 (1/2”) 2.9 6.35 50 20.00
- 120º 15.87 (5/8”) 3.2 9.52 60 25.60
• Morse taper 19.05 (3/4”) 3.5 9.52 60 33.00
25.4 (1”) 3.8 9.52 70 43.00
Sizes in Inches
