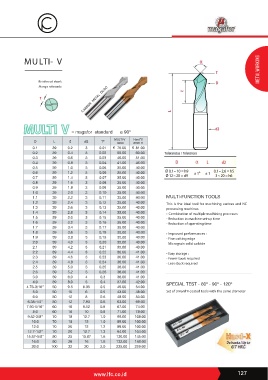

Page 83 - LFC Catalogue metalworking

metalworking
MULTI- V

Reinforced shank
Mango reforzada
CARBIDE METAL DURO

T

= magafor standard α 90º
D L d2 T* MULTI-V Hard”X
8090-H
8090
0.1 39 0.2 3 0.01 € 76.00 € 81.00
0.2 39 0.4 3 0.02 55.00 60.00
0.3 39 0.6 3 0.03 46.00 51.00
0.4 39 0.8 3 0.04 41.00 46.00
0.5 39 1.0 3 0.05 35.00 40.00
0.6 39 1.2 3 0.06 35.00 40.00
0.7 39 1.4 3 0.07 35.00 40.00
0.8 39 1.6 3 0.08 35.00 40.00
0.9 39 1.8 3 0.09 35.00 40.00
1.0 39 2.0 3 0.10 35.00 40.00
1.1 39 2.2 3 0.11 35.00 40.00 MULTI-FUNCTION TOOLS
1.2 39 2.4 3 0.12 35.00 40.00 This is the ideal tool for machining centres and NC
1.3 39 2.6 3 0.13 35.00 40.00 processing machines.
1.4 39 2.8 3 0.14 35.00 40.00 • Combination of multiple machining processes
1.5 39 3.0 3 0.15 35.00 40.00 - Reduction in machine set-up time
1.6 39 3.2 3 0.16 35.00 40.00 - Reduction of operating time
1.7 39 3.4 3 0.17 35.00 40.00
1.8 39 3.6 3 0.18 35.00 40.00 • Improved performances :
1.9 39 3.8 3 0.19 35.00 40.00 - Fine cutting edge
2.0 39 4.0 3 0.20 35.00 40.00 - Micrograin solid carbide
2.1 39 4.2 3 0.21 35.00 40.00
2.2 39 4.4 3 0.22 36.00 41.00 • Easy storage :
2.3 39 4.6 3 0.23 36.00 41.00 - Fewer tools required
2.4 39 4.8 3 0.24 36.00 41.00 - Less stock required
2.5 39 5.0 3 0.25 36.00 41.00
2.6 39 5.2 3 0.26 36.00 41.00
3.0 39 6.0 4 0.3 36.00 41.00
4.0 39 8.0 5 0.4 37.00 42.00 SPECIAL TEST - 60º - 90º - 120º
4.76-3/16” 50 9.5 6.35 0.5 49.00 54.00
5.0 50 10 6 0.5 43.00 48.00 Set of 3 Hard’X coated tools with the same diameter
6.0 50 12 8 0.6 48.00 53.00
6.35-1/4” 50 12 7.93 0.6 63.00 69.00
7.93-5/16” 60 16 9.52 0.8 67.00 74.00
8.0 60 16 10 0.8 71.00 78.00
9.52-3/8” 70 18 12.7 1.0 99.00 108.00
10.0 70 18 12 1.0 89.00 100.00 Ø 6 - 120°
12.0 70 20 12 1.2 89.00 100.00 Ø 6 - 90°
12.7-1/2” 70 20 12.7 1.3 94.00 104.00 Ø 6 - 60°
15.87-5/8” 80 25 15.87 1.6 130.00 145.00
16.0 80 26 16 1.6 132.00 148.00
20.0 100 32 20 2.0 235.00 259.00
