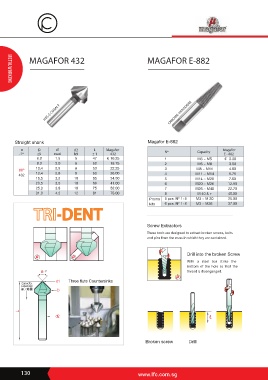

Page 86 - LFC Catalogue metalworking

MAGAFOR 432 MAGAFOR E-882

metalworking

HSS-E COBALT CHROME-VANADIUM

Straight shank Magafor E-882
α D d1 d2 L Magafor Nº Capacity Magafor
-1º z9 maxi h9 ± 1 432 E - 882
6.3 1.5 5 47 € 16.25 1 M3 ~ M5 € 3.30
8.3 2.0 6 52 18.75 2 M5 ~ M8 3.90
60º 10.4 2.5 6 53 22.25 3 M8 ~ M11 4.80
432 12.4 2.8 8 60 26.00 4 M11 ~ M14 5.75
16.5 3.2 10 65 34.50 5 M14 ~ M20 7.60
20.5 3.5 10 69 41.00 6 M20 ~ M26 12.90
25.0 3.8 10 75 52.00 7 M26 ~ M40 22.70
31.0 4.2 12 81 75.00 8 M 40 & + 45.00
Promo 5 pcs. Nº 1~5 M3 ~ M 20 25.00
kits 6 pcs. Nº 1~6 M3 ~ M26 37.00

Screw Extractors
These tools are designed to extract broken screws, bolts
and pins from the mass in which they are contained.

Drill into the broken Screw
With a steel bar strike the
bottom of the hole so that the
α - 1° thread is disenganged.
d1 Three flute Countersinks
Capacity
Capacidad
D

L
d2

Broken screw Drill

130 www.lfc.com.sg
