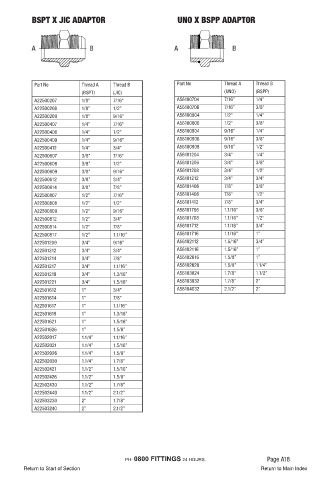

Page 22 - Fluid Fitting 2018_extended

BSPT X JIC ADAPTOR UNO X BSPP ADAPTOR

A B A B

Part No Thread A Thread B Part No Thread A Thread B
(BSPT) (JIC) (UNO) (BSPP)
A22500207 1/8” 7/16” A56100704 7/16” 1/4”
A22500208 1/8” 1/2” A56100706 7/16” 3/8”
A22500209 1/8” 9/16” A56100804 1/2” 1/4”
A22500407 1/4” 7/16” A56100806 1/2” 3/8”
A22500408 1/4” 1/2” A56100904 9/16” 1/4”
A22500409 1/4” 9/16” A56100906 9/16” 3/8”
A22500412 1/4” 3/4” A56100908 9/16” 1/2”
A22500607 3/8” 7/16” A56101204 3/4” 1/4”
A22500608 3/8” 1/2” A56101206 3/4” 3/8”
A22500609 3/8” 9/16” A56101208 3/4” 1/2”
A22500612 3/8” 3/4” A56101212 3/4” 3/4”
A22500614 3/8” 7/8” A56101406 7/8” 3/8”
A22500807 1/2” 7/16” A56101408 7/8” 1/2”
A22500808 1/2” 1/2” A56101412 7/8” 3/4”
A22500809 1/2” 9/16” A56101706 1.1/16” 3/8”
A22500812 1/2” 3/4” A56101708 1.1/16” 1/2”
A22500814 1/2” 7/8” A56101712 1.1/16” 3/4”
A22500817 1/2” 1.1/16” A56101716 1.1/16” 1”
A22501209 3/4” 9/16” A56102112 1.5/16” 3/4”
A22501212 3/4” 3/4” A56102116 1.5/16” 1”
A22501214 3/4” 7/8” A56102616 1.5/8” 1”
A22501217 3/4” 1.1/16” A56102620 1.5/8” 1.1/4”
A22501219 3/4” 1.3/16” A56103024 1.7/8” 1.1/2”
A22501221 3/4” 1.5/16” A56103032 1.7/8” 2”
A22501612 1” 3/4” A56104032 2.1/2” 2”
A22501614 1” 7/8”
A22501617 1” 1.1/16”
A22501619 1” 1.3/16”
A22501621 1” 1.5/16”
A22501626 1” 1.5/8”
A22502017 1.1/4” 1.1/16”
A22502021 1.1/4” 1.5/16”
A22502026 1.1/4” 1.5/8”
A22502030 1.1/4” 1.7/8”
A22502421 1.1/2” 1.5/16”
A22502426 1.1/2” 1.5/8”
A22502430 1.1/2” 1.7/8”
A22502440 1.1/2” 2.1/2”
A22503230 2” 1.7/8”
A22503240 2” 2.1/2”
