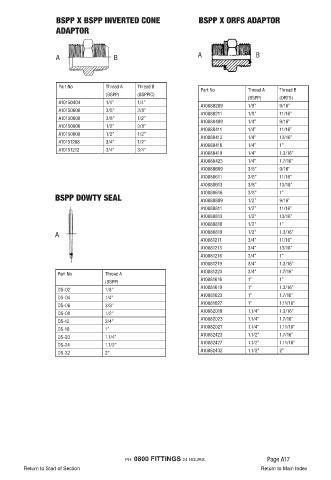

Page 21 - Fluid Fitting 2018_extended

BSPP X BSPP INVERTED CONE BSPP X ORFS ADAPTOR
ADAPTOR

A B A B

Part No Thread A Thread B
Part No Thread A Thread B
(BSPP) (BSPPIC)
(BSPP) (ORFS)
A10150404 1/4” 1/4”
A10880209 1/8” 9/16”
A10150606 3/8” 3/8” A10880211 1/8” 11/16”
A10150608 3/8” 1/2”
A10880409 1/4” 9/16”
A10150806 1/2” 3/8”
A10880411 1/4” 11/16”
A10150808 1/2” 1/2”
A10880413 1/4” 13/16”
A10151208 3/4” 1/2”
A10880416 1/4” 1”
A10151212 3/4” 3/4”
A10880419 1/4” 1.3/16”
A10880423 1/4” 1.7/16”
A10880609 3/8” 9/16”
A10880611 3/8” 11/16”
A10880613 3/8” 13/16”
A10880616 3/8” 1”
BSPP DOWTY SEAL A10880809 1/2” 9/16”
A10880811 1/2” 11/16”
A10880813 1/2” 13/16”
A10880816 1/2” 1”
A A10880819 1/2” 1.3/16”
A10881211 3/4” 11/16”
A10881213 3/4” 13/16”
A10881216 3/4” 1”
A10881219 3/4” 1.3/16”
Part No Thread A A10881223 3/4” 1.7/16”
(BSPP) A10881616 1” 1”
DS-02 1/8” A10881619 1” 1.3/16”
DS-04 1/4” A10881623 1” 1.7/16”
A10881627 1” 1.11/16”
DS-06 3/8”
DS-08 1/2” A10882019 1.1/4” 1.3/16”
DS-12 3/4” A10882023 1.1/4” 1.7/16”
DS-16 1” A10882027 1.1/4” 1.11/16”
DS-20 1.1/4” A10882423 1.1/2” 1.7/16”
DS-24 1.1/2” A10882427 1.1/2” 1.11/16”
A10882432 1.1/2” 2”
DS-32 2”
