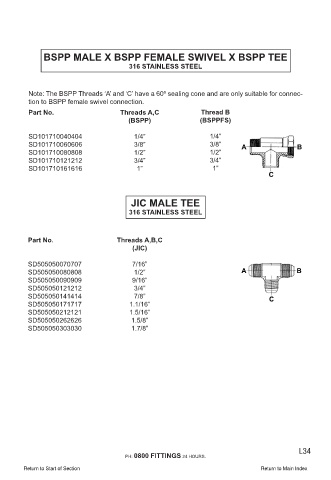

BSPP MALE X BSPP FEMALE SWIVEL X BSPP TEE
316 STAINLESS STEEL

Note: The BSPP Threads ‘A’ and ‘C’ have a 60º sealing cone and are only suitable for connec-
tion to BSPP female swivel connection.

Part No. Threads A,C Thread B
(BSPP) (BSPPFS)

SD101710040404 1/4” 1/4”
SD101710060606 3/8” 3/8”
SD101710080808 1/2” 1/2”
SD101710121212 3/4” 3/4”
SD101710161616 1” 1”

JIC MALE TEE

316 STAINLESS STEEL

Part No. Threads A,B,C
(JIC)

SD505050070707 7/16”
SD505050080808 1/2”
SD505050090909 9/16”
SD505050121212 3/4”
SD505050141414 7/8”
SD505050171717 1.1/16”
SD505050212121 1.5/16”
SD505050262626 1.5/8”
SD505050303030 1.7/8”
