HIGH QUALITY PRODUCTS EXCELLENCE IN SERVICE

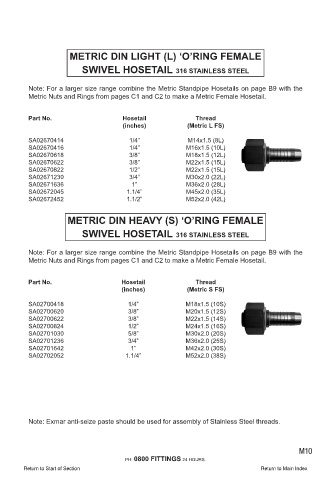

METRIC DIN LIGHT (L) ‘O’RING FEMALE

SWIVEL HOSETAIL 316 STAINLESS STEEL

Note: For a larger size range combine the Metric Standpipe Hosetails on page B9 with the
Metric Nuts and Rings from pages C1 and C2 to make a Metric Female Hosetail.

Part No. Hosetail Thread
(inches) (Metric L FS)

SA02670414 1/4” M14x1.5 (8L)
SA02670416 1/4” M16x1.5 (10L)
SA02670618 3/8” M18x1.5 (12L)
SA02670622 3/8” M22x1.5 (15L)
SA02670822 1/2” M22x1.5 (15L)
SA02671230 3/4” M30x2.0 (22L)
SA02671636 1” M36x2.0 (28L)
SA02672045 1.1/4” M45x2.0 (35L)
SA02672452 1.1/2” M52x2.0 (42L)

METRIC DIN HEAVY (S) ‘O’RING FEMALE

SWIVEL HOSETAIL 316 STAINLESS STEEL

Note: For a larger size range combine the Metric Standpipe Hosetails on page B9 with the
Metric Nuts and Rings from pages C1 and C2 to make a Metric Female Hosetail.

Part No. Hosetail Thread
(inches) (Metric S FS)

SA02700418 1/4” M18x1.5 (10S)
SA02700620 3/8” M20x1.5 (12S)
SA02700622 3/8” M22x1.5 (14S)
SA02700824 1/2” M24x1.5 (16S)
SA02701030 5/8” M30x2.0 (20S)
SA02701236 3/4” M36x2.0 (25S)
SA02701642 1” M42x2.0 (30S)
SA02702052 1.1/4” M52x2.0 (38S)

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.

PH: 0800 FITTINGS 24 HOURS. M8
PAGE B8 M10
