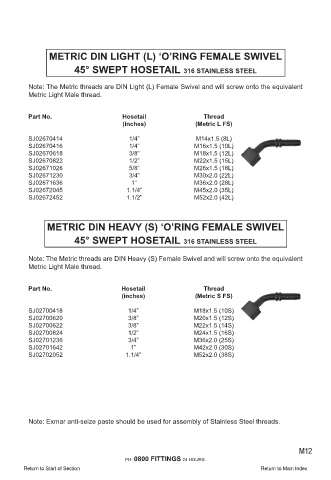

METRIC DIN LIGHT (L) ‘O’RING FEMALE SWIVEL

45° SWEPT HOSETAIL 316 STAINLESS STEEL

Note: The Metric threads are DIN Light (L) Female Swivel and will screw onto the equivalent
Metric Light Male thread.

Part No. Hosetail Thread
(inches) (Metric L FS)

SJ02670414 1/4” M14x1.5 (8L)
SJ02670416 1/4” M16x1.5 (10L)
SJ02670618 3/8” M18x1.5 (12L)
SJ02670822 1/2” M22x1.5 (15L)
SJ02671026 5/8” M26x1.5 (18L)
SJ02671230 3/4” M30x2.0 (22L)
SJ02671636 1” M36x2.0 (28L)
SJ02672045 1.1/4” M45x2.0 (35L)
SJ02672452 1.1/2” M52x2.0 (42L)

METRIC DIN HEAVY (S) ‘O’RING FEMALE SWIVEL

45° SWEPT HOSETAIL 316 STAINLESS STEEL

Note: The Metric threads are DIN Heavy (S) Female Swivel and will screw onto the equivalent
Metric Light Male thread.

Part No. Hosetail Thread
(inches) (Metric S FS)

SJ02700418 1/4” M18x1.5 (10S)
SJ02700620 3/8” M20x1.5 (12S)
SJ02700622 3/8” M22x1.5 (14S)
SJ02700824 1/2” M24x1.5 (16S)
SJ02701236 3/4” M36x2.0 (25S)
SJ02701642 1” M42x2.0 (30S)
SJ02702052 1.1/4” M52x2.0 (38S)

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
