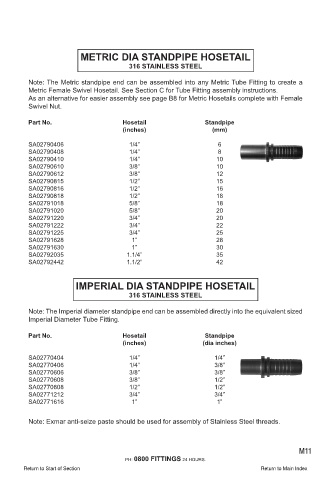

Page 285 - Fluid Fitting 2018_extended

HIGH QUALITY PRODUCTS EXCELLENCE IN SERVICE

METRIC DIA STANDPIPE HOSETAIL
316 STAINLESS STEEL

Note: The Metric standpipe end can be assembled into any Metric Tube Fitting to create a
Metric Female Swivel Hosetail. See Section C for Tube Fitting assembly instructions.
As an alternative for easier assembly see page B8 for Metric Hosetails complete with Female
Swivel Nut.

Part No. Hosetail Standpipe
(inches) (mm)

SA02790406 1/4” 6
SA02790408 1/4” 8
SA02790410 1/4” 10
SA02790610 3/8” 10
SA02790612 3/8” 12
SA02790815 1/2” 15
SA02790816 1/2” 16
SA02790818 1/2” 18
SA02791018 5/8” 18
SA02791020 5/8” 20
SA02791220 3/4” 20
SA02791222 3/4” 22
SA02791225 3/4” 25
SA02791628 1” 28
SA02791630 1” 30
SA02792035 1.1/4” 35
SA02792442 1.1/2” 42

IMPERIAL DIA STANDPIPE HOSETAIL

316 STAINLESS STEEL

Note: The Imperial diameter standpipe end can be assembled directly into the equivalent sized
Imperial Diameter Tube Fitting.

Part No. Hosetail Standpipe
(inches) (dia inches)

SA02770404 1/4” 1/4”
SA02770406 1/4” 3/8”
SA02770606 3/8” 3/8”
SA02770608 3/8” 1/2”
SA02770808 1/2” 1/2”
SA02771212 3/4” 3/4”
SA02771616 1” 1”

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
