HIGH QUALITY PRODUCTS EXCELLENCE IN SERVICE

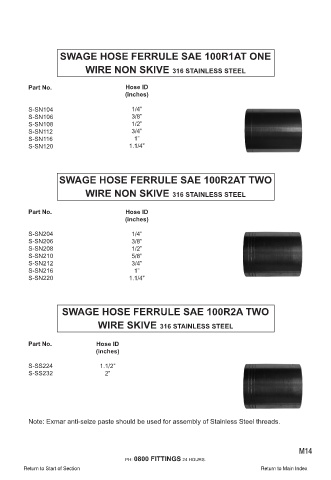

SWAGE HOSE FERRULE SAE 100R1AT ONE

WIRE NON SKIVE 316 STAINLESS STEEL

Part No. Hose ID Crimp Dia
(inches) (mm)

S-SN104 1/4” 16.7
S-SN106 3/8” 20.0
S-SN108 1/2” 23.5
S-SN112 3/4” 30.4
S-SN116 1” 38.6
S-SN120 1.1/4” 45.9

SWAGE HOSE FERRULE SAE 100R2AT TWO

WIRE NON SKIVE 316 STAINLESS STEEL

Part No. Hose ID Crimp Dia
(inches) (mm)

S-SN204 1/4” 17.6
S-SN206 3/8” 21.8
S-SN208 1/2” 24.8
S-SN210 5/8” 27.8
S-SN212 3/4” 32.0
S-SN216 1” 40.7
S-SN220 1.1/4” 49.0

SWAGE HOSE FERRULE SAE 100R2A TWO

WIRE SKIVE 316 STAINLESS STEEL

Part No. Hose ID Crimp Dia Skive Lth
(inches) (mm) (mm)

S-SS224 1.1/2” 57.3 48.0
S-SS232 2” 70.5 64.8

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
