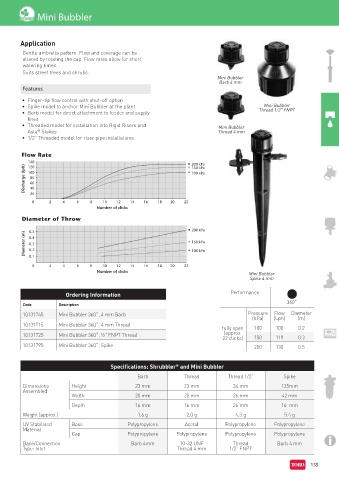

Page 145 - Toro Irrigation Product Catalogue August 2020

Mini Bubbler

Application

Gentle umbrella pattern. Flow and coverage can be
altered by rotating the cap. Flow rates allow for short
watering times.
Suits street trees and shrubs.
Mini Bubbler
Barb 4 mm
Features
• Finger-tip flow control with shut-off option
• Spike model to anchor Mini Bubbler at the plant Mini Bubbler
• Barb model for direct attachment to feeder and supply Thread 1/2” FNPT
lines
• Threaded model for installation into Rigid Risers and Mini Bubbler
Asta Stakes Thread 4 mm
®
• 1/2” Threaded model for riser pipe installations

Flow Rate
140 • 200 kPa
Discharge (lph) 100 • 100 kPa
120
• 150 kPa
80
60
40
20
0 2 4 6 8 10 12 14 16 18 20 22
Number of clicks
Diameter of Throw • 200 kPa

Diameter (m) 0.5 • 150 kPa
0.4
0.3
0.2
• 100 kPa
0.1
0 2 4 6 8 10 12 14 16 18 20 22
Number of clicks Mini Bubbler
Spike 4 mm

Ordering Information Performance
360˚
Code Description
10131745 Mini Bubbler 360˚, 4 mm Barb Pressure Flow Diameter
(kPa) (Lph) (m)
10131715 Mini Bubbler 360˚, 4 mm Thread
fully open 100 100 0.2
10131725 Mini Bubbler 360˚, ½” FNPT Thread (approx.
22 clicks) 150 119 0.3
10131795 Mini Bubbler 360˚, Spike 200 130 0.5

Specifications: Shrubbler and Mini Bubbler
®
Barb Thread Thread 1/2” Spike
Dimensions Height 23 mm 23 mm 34 mm 135mm
Assembled
Width 20 mm 20 mm 26 mm 42 mm
Depth 16 mm 16 mm 26 mm 16 mm
Weight (approx.) 1.6 g 2.0 g 4.3 g 5.4 g
UV Stabilised Base Polypropylene Acetal Polypropylene Polypropylene
Material
Cap Polypropylene Polypropylene Polypropylene Polypropylene
Base/Connection Barb 4mm 10-32 UNF Thread Barb 4 mm
Type: Inlet Thread 4 mm 1/2” FNPT
