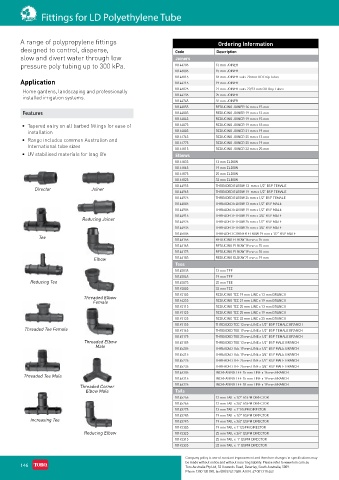

Page 158 - Toro Irrigation Product Catalogue August 2020

Fittings for LD Polyethylene Tube

A range of polypropylene fittings Ordering Information
designed to control, disperse, Code Description
slow and divert water through low Joiners
pressure poly tubing up to 300 kPa. 10144705 13 mm JOINER
10146005 15 mm JOINER
10146015 18 mm JOINER suits 20 mm OD Drip Tubes
Application 10144715 19 mm JOINER
Home gardens, landscaping and professionally 10146025 21 mm JOINER suits 22/23 mm OD Drip Tubes
installed irrigation systems. 10144735 25 mm JOINER
10144745 32 mm JOINER
10146055 REDUCING JOINER 16 mm x 15 mm
Features 10144805 REDUCING JOINER 19 mm x 13 mm
10146065 REDUCING JOINER 19 mm x 15 mm
• Tapered entry on all barbed fittings for ease of 10146075 REDUCING JOINER 19 mm x 18 mm
installation 10146085 REDUCING JOINER 21 mm x 19 mm
10144765 REDUCING JOINER 25 mm x 13 mm
• Range includes common Australian and 10144775 REDUCING JOINER 25 mm x 19 mm
International tube sizes 10144815 REDUCING JOINER 32 mm x 25 mm
• UV stabilised materials for long life Elbows
10144835 13 mm ELBOW
10144865 19 mm ELBOW
10144875 25 mm ELBOW
10144825 32 mm ELBOW
10144955 THREADED ELBOW 13 mm x 1/2" BSP FEMALE
Director Joiner 10144965 THREADED ELBOW 19 mm x 1/2" BSP FEMALE
10144975 THREADED ELBOW 25 mm x 1/2" BSP FEMALE
10144885 THREADED ELBOW 13 mm x 1/2" BSP MALE
10144905 THREADED ELBOW 19 mm x 1/2" BSP MALE
10144915 THREADED ELBOW 19 mm x 3/4" BSP MALE
Reducing Joiner
10144925 THREADED ELBOW 25 mm x 1/2" BSP MALE
10144935 THREADED ELBOW 25 mm x 3/4" BSP MALE
10145005 THREADED CORNER ELBOW 19 mm x 1/2" BSP MALE
Tee 10146155 REDUCING ELBOW 16 mm x 15 mm
10146165 REDUCING ELBOW 19 mm x 15 mm
10146175 REDUCING ELBOW 19 mm x 18 mm
Elbow 10146185 REDUCING ELBOW 21 mm x 19 mm
Tees
10145035 13 mm TEE
10145065 19 mm TEE
Reducing Tee 10145075 25 mm TEE
10145085 32 mm TEE
10145105 REDUCING TEE 19 mm LINE x 13 mm BRANCH
Threaded Elbow
Female 10146255 REDUCING TEE 21 mm LINE x 19 mm BRANCH
10145115 REDUCING TEE 25 mm LINE x 13 mm BRANCH
10145125 REDUCING TEE 25 mm LINE x 19 mm BRANCH
10145135 REDUCING TEE 32 mm LINE x 25 mm BRANCH
10145155 THREADED TEE 13 mm LINE x 1/2" BSP FEMALE BRANCH
Threaded Tee Female 10145165 THREADED TEE 19 mm LINE x 1/2" BSP FEMALE BRANCH
10145175 THREADED TEE 25 mm LINE x 1/2" BSP FEMALE BRANCH
Threaded Elbow 10145185 THREADED TEE 13 mm LINE x 1/2" BSP MALE BRANCH
Male 10145205 THREADED TEE 19 mm LINE x 1/2" BSP MALE BRANCH
10145215 THREADED TEE 19 mm LINE x 3/4" BSP MALE BRANCH
10145225 THREADED TEE 25 mm LINE x 1/2" BSP MALE BRANCH
10145235 THREADED TEE 25 mm LINE x 3/4" BSP MALE BRANCH
10146305 INCREASING TEE 15 mm LINE x 16 mm BRANCH
Threaded Tee Male
10146315 INCREASING TEE 15 mm LINE x 19 mm BRANCH
Threaded Corner 10146325 INCREASING TEE 18 mm LINE x 19 mm BRANCH
Elbow Male Tails
10145255 13 mm TAIL x 1/2" BSPM DIRECTOR
10145265 13 mm TAIL x 3/4" BSPM DIRECTOR
10145275 13 mm TAIL x 1" BSPM DIRECTOR
10145285 19 mm TAIL x 1/2" BSPM DIRECTOR
Increasing Tee 10145295 19 mm TAIL x 3/4" BSPM DIRECTOR
10145305 19 mm TAIL x 1" BSPM DIRECTOR
Reducing Elbow 10145325 25 mm TAIL x 3/4" BSPM DIRECTOR
10145315 25 mm TAIL x 1" BSPM DIRECTOR
10145335 32 mm TAIL x 1" BSPM DIRECTOR

Company policy is one of constant improvement and therefore changes in specifications may
146 be made without notice and without incurring liability. Please refer to www.toro.com.au
