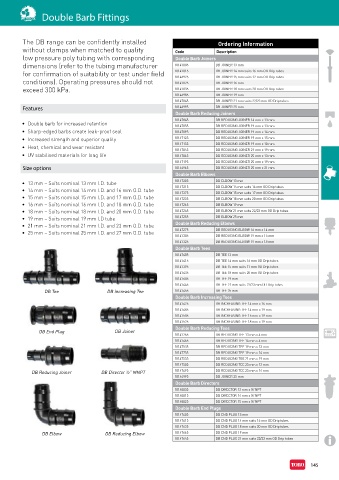

Double Barb Fittings

The DB range can be confidently installed Ordering Information
without clamps when matched to quality Code Description
low pressure poly tubing with corresponding Double Barb Joiners
dimensions (refer to the tubing manufacturer 10147005 DB JOINER 13 mm
for confirmation of suitability or test under field 10147015 DB JOINER 14 mm suits 16 mm OD Drip tubes
10146975
DB JOINER 15 mm suits 17 mm OD Drip tubes
conditions). Operating pressures should not 10147025 DB JOINER 16 mm
exceed 300 kPa. 10147035 DB JOINER 18 mm suits 20 mm OD Drip tubes
10146985 DB JOINER 19 mm
10147045 DB JOINER 21 mm suits 22/23 mm OD Drip tubes
Features 10146995 DB JOINER 25 mm
Double Barb Reducing Joiners
10147845 DB REDUCING JOINER 14 mm x 13 mm
• Double barb for increased retention 10147055 DB REDUCING JOINER 19 mm x 13 mm
• Sharp-edged barbs create leak-proof seal 10147095 DB REDUCING JOINER 19 mm x 14 mm
• Increased strength and superior quality 10147125 DB REDUCING JOINER 19 mm x 15 mm
10147155 DB REDUCING JOINER 19 mm x 18 mm
• Heat, chemical and wear resistant
10147845 DB REDUCING JOINER 21 mm x 19 mm
• UV stabilised materials for long life 10147065 DB REDUCING JOINER 25 mm x 13 mm
10147195 DB REDUCING JOINER 25 mm x 19 mm
Size options 10146965 DB REDUCING JOINER 25 mm x 21 mm
Double Barb Elbows
• 13 mm – Suits nominal 13 mm I.D. tube 10147205 DB ELBOW 13 mm
• 14 mm – Suits nominal 14 mm I.D. and 16 mm O.D. tube 10147215 DB ELBOW 14 mm suits 16 mm OD Drip tubes
10147375
DB ELBOW 15 mm suits 17 mm OD Drip tubes
• 15 mm – Suits nominal 15 mm I.D. and 17 mm O.D. tube 10147235 DB ELBOW 18 mm suits 20 mm OD Drip tubes
• 16 mm – Suits nominal 16 mm I.D. and 18 mm O.D. tube 10147265 DB ELBOW 19 mm
• 18 mm – Suits nominal 18 mm I.D. and 20 mm O.D. tube 10147245 DB ELBOW 21 mm suits 22/23 mm OD Drip tubes
• 19 mm – Suits nominal 19 mm I.D tube 10147255 DB ELBOW 25 mm
• 21 mm – Suits nominal 21 mm I.D. and 23 mm O.D. tube Double Barb Reducing Elbows
• 25 mm – Suits nominal 25 mm I.D. and 27 mm O.D. tube 10147275 DB REDUCING ELBOW 16 mm x 14 mm
10147305 DB REDUCING ELBOW 19 mm x 15 mm
10147325 DB REDUCING ELBOW 19 mm x 18 mm
Double Barb Tees
10147405 DB TEE 13 mm
10147415 DB TEE 14 mm suits 16 mm OD Drip tubes
10147395 DB TEE 15 mm suits 17 mm OD Drip tubes
10147435 DB TEE 18 mm suits 20 mm OD Drip tubes
10147605 DB TEE 19 mm
10147445 DB TEE 21 mm suits 22/23 mm OD Drip tubes
DB Tee DB Increasing Tee 10147455 DB TEE 25 mm
Double Barb Increasing Tees
10147475 DB INCREASING TEE 14 mm x 16 mm
10147485 DB INCREASING TEE 14 mm x 19 mm
10147505 DB INCREASING TEE 15 mm x 19 mm
10147525 DB INCREASING TEE 18 mm x 19 mm
Double Barb Reducing Tees
DB End Plug DB Joiner
10147765 DB REDUCING TEE 13 mm x 4 mm
10147465 DB REDUCING TEE 14 mm x 4 mm
10147535 DB REDUCING TEE 19 mm x 13 mm
10147755 DB REDUCING TEE 19 mm x 14 mm
10147555 DB REDUCING TEE 21 mm x 19 mm
10147585 DB REDUCING TEE 25 mm x 13 mm
DB Reducing Joiner DB Director ½” MNPT 10147695 DB REDUCING TEE 25 mm x 14 mm
10146995 DB JOINER 25 mm
Double Barb Directors
10148035 DB DIRECTOR 13 mm x ½"NPT
10148015 DB DIRECTOR 14 mm x ½"NPT
10148025 DB DIRECTOR 15 mm x ½"NPT
Double Barb End Plugs
10147685 DB END PLUG 13 mm
10147615 DB END PLUG 14 mm suits 16 mm OD Drip tubes
10147635 DB END PLUG 18 mm suits 20 mm OD Drip tubes
DB Elbow DB Reducing Elbow 10147665 DB END PLUG 19 mm
10147645 DB END PLUG 21 mm suits 22/23 mm OD Drip tubes

145
