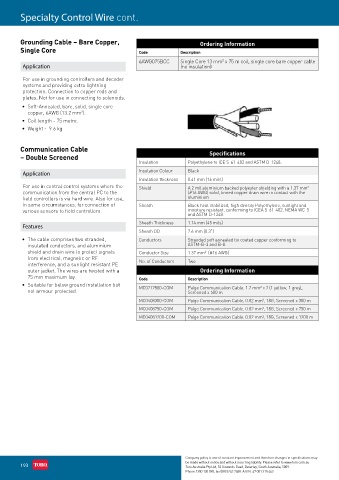

Page 207 - Toro Irrigation Product Catalogue August 2020

Specialty Control Wire cont.

Grounding Cable – Bare Copper, Ordering Information
Single Core Code Description

6AWG075BCC Single Core 13 mm x 75 m coil, single core bare copper cable
2
Application (no insulation)
For use in grounding controllers and decoder
systems and providing extra lightning
protection. Connection to copper rods and
plates. Not for use in connecting to solenoids.
• Soft-Annealed, bare, solid, single core
copper, 6AWG (13.2 mm ).
2
• Coil length - 75 metre.
• Weight - 9.6 kg

Communication Cable
– Double Screened Specifications
Insulation Polyethylene to ICE S-61-402 and ASTM D-1248.
Application Insulation Colour Black
Insulation thickness 0.41 mm (16 mils)
For use in central control systems where the Shield A 2 mil aluminium backed polyester shielding with a 1.37 mm 2
communication from the central PC to the (#16 AWG) solid, tinned copper drain wire in contact with the
field controllers is via hard wire. Also for use, aluminium
in some circumstances, for connection of Sheath Black heat stabilized, high density Polyethylene, sunlight and
various sensors to field controllers. moisture resistant, conforming to ICEA S-61-402, NEMA WC-5
and ASTM D-1248.
Sheath Thickness 1.14 mm (45 mils)
Features
Sheath OD 7.6 mm (0.3”)
• The cable comprises two stranded, Conductors Stranded soft annealed tin coated copper conforming to
insulated conductors, and aluminium ASTM-B-3 and B-8.
shield and drain wire to protect signals Conductor Size 1.37 mm (#16 AWG)
2
from electrical, magnetic or RF
interference, and a sunlight resistant PE No. of Conductors Two
outer jacket. The wires are twisted with a Ordering Information
75 mm maximum lay. Code Description
• Suitable for below ground installation but
not armour protected. MC0212500-COM Paige Communication Cable. 1.2 mm² x 2 (1 yellow, 1 grey),
Screened x 500 m
MC0408300-COM Paige Communication Cable. 0.82 mm², 18G, Screened x 300 m
MC0408750-COM Paige Communication Cable. 0.82 mm², 18G, Screened x 750 m
MC04081200-COM Paige Communication Cable. 0.82 mm², 18G, Screened x 1200 m
