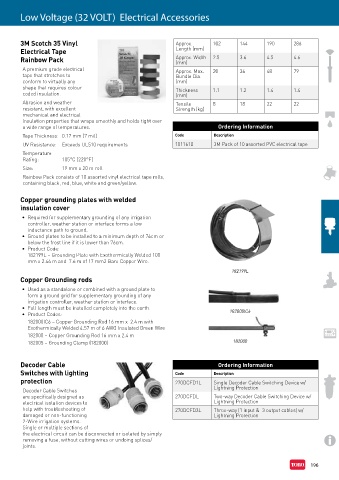

Page 210 - Toro Irrigation Product Catalogue August 2020

Low Voltage (32 VOLT) Electrical Accessories

3M Scotch 35 Vinyl Approx. 102 144 190 286
Electrical Tape Length (mm)
Rainbow Pack Approx. Width 2.5 3.6 4.5 4.6
(mm)
A premium grade electrical Approx. Max. 20 36 48 79
tape that stretches to Bundle Dia.
conform to virtually any (mm)
shape that requires colour Thickness 1.1 1.2 1.4 1.4
coded insulation. (mm)
Abrasion and weather Tensile 8 18 22 22
resistant, with excellent Strength (kg)
mechanical and electrical
insulation properties that wraps smoothly and holds tight over
a wide range of temperatures. Ordering Information
Tape Thickness: 0.17 mm (7 mil) Code Description
UV Resistance: Exceeds UL510 requirements 1011610 3M Pack of 10 assorted PVC electrical tape
Temperature
Rating: 105°C (220°F)
Size: 19 mm x 20 m roll
Rainbow Pack consists of 10 assorted vinyl electrical tape rolls,
containing black, red, blue, white and green/yellow.

Copper grounding plates with welded
insulation cover
• Required for supplementary grounding of any irrigation
controller, weather station or interface forms a low
inductance path to ground.
• Ground plates to be installed to a minimum depth of 76cm or
below the frost line if it is lower than 76cm.
• Product Code:
182199L – Grounding Plate with Exothermically Welded 100
mm x 2.44 m and 7.6 m of 17 mm2 Bare Copper Wire.

182199L
Copper Grounding rods

• Used as a standalone or combined with a ground plate to
form a ground grid for supplementary grounding of any
irrigation controller, weather station or interface.
• Full length must be installed completely into the earth.
• Product Codes: 182000IC6
182000IC6 – Copper Grounding Rod 16 mm x 2.4 m with
Exothermically Welded 4.57 m of 6 AWG Insulated Green Wire
182000 – Copper Grounding Rod 16 mm x 2.4 m
182005 – Grounding Clamp (182000) 182000

Decoder Cable Ordering Information
Switches with lighting Code Description
protection 270DCFD1L Single Decoder Cable Switching Device w/

Decoder Cable Switches Lightning Protection
are specifically designed as 270DCFDL Two-way Decoder Cable Switching Device w/
electrical isolation devices to Lightning Protection
help with troubleshooting of 270DCFD3L Three-way (1 input & 3 output cables) w/
damaged or non-functioning Lightning Protection
2-Wire irrigation systems.
Single or multiple sections of
the electrical circuit can be disconnected or isolated by simply
removing a fuse, without cutting wires or undoing splices/
joints.

196
