Decoder Cable Fuse Device (DCFD) cont.
Decoder Cable Fuse Device Installation (cont.)

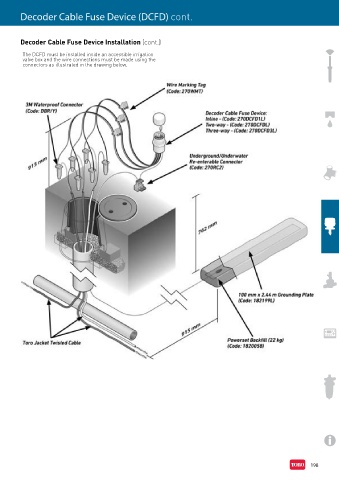

The DCFD must be installed inside an accessible irrigation
valve box and the wire connections must be made using the
connectors as illustrated in the drawing below.
